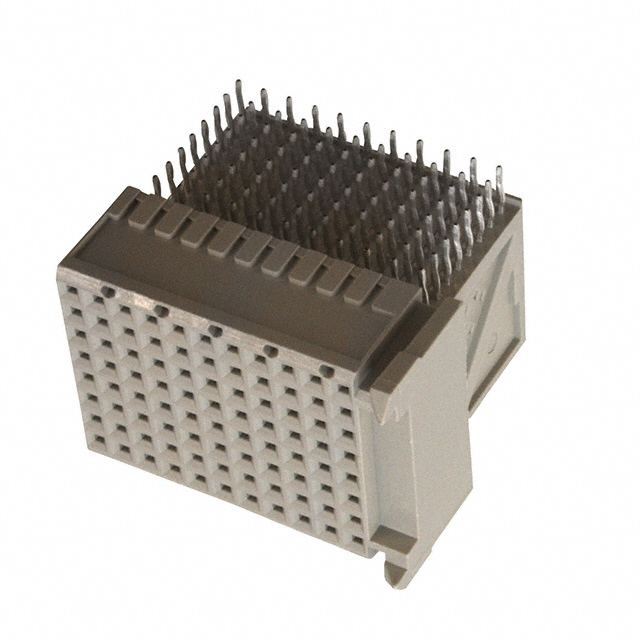

5646446-1
ActiveTE Connectivity Raychem Cable Protection
2MM HM,ASY,T-F,REC,TWIST TULIP
Deep-Dive with AI
Search across all available documentation for this part.
5646446-1
ActiveTE Connectivity Raychem Cable Protection
2MM HM,ASY,T-F,REC,TWIST TULIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5646446-1 |
|---|---|
| Connector Style | F 11 |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 88 |
| Number of Positions Loaded | All |
| Number of Rows | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 750 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.93 | |
| 20 | $ 9.72 | |||
| 40 | $ 9.46 | |||
| 60 | $ 9.10 | |||
Description
General part information
Z-PACK 2mm HM Series
Hard Metric Connectors 154P VERT PLUG ZPACK
