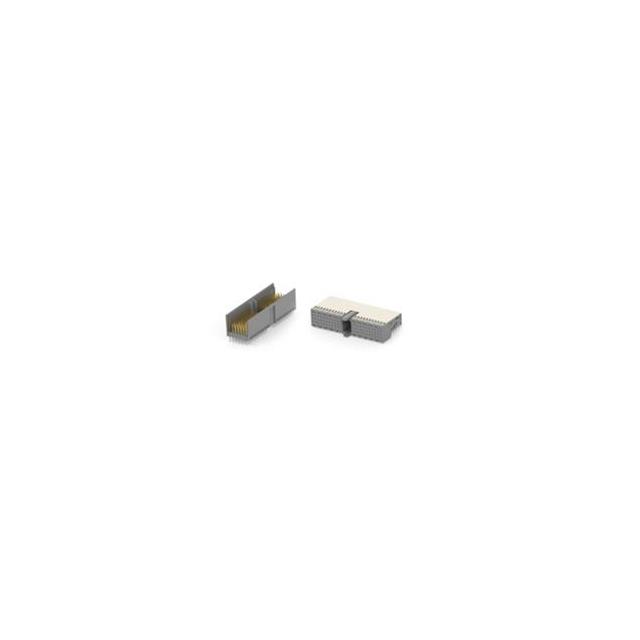

2392196-1
ActiveTE Connectivity Raychem Cable Protection
Z-PACK 2MM HM TYPE A/B 127P EON
Deep-Dive with AI
Search across all available documentation for this part.
2392196-1
ActiveTE Connectivity Raychem Cable Protection
Z-PACK 2MM HM TYPE A/B 127P EON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2392196-1 |
|---|---|
| Connector Style | AB 19 |
| Connector Type | Header, Male Pins |
| Connector Usage | CompactPCI |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 95 |
| Number of Positions [custom] | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2, 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.87 | |
| 10 | $ 6.21 | |||
| 25 | $ 6.05 | |||
| 54 | $ 5.82 | |||
| 108 | $ 5.79 | |||
Description
General part information
Z-PACK 2mm HM Series
Hard Metric Connectors 154P VERT PLUG ZPACK
