859-408

Active

WAGO Corporation

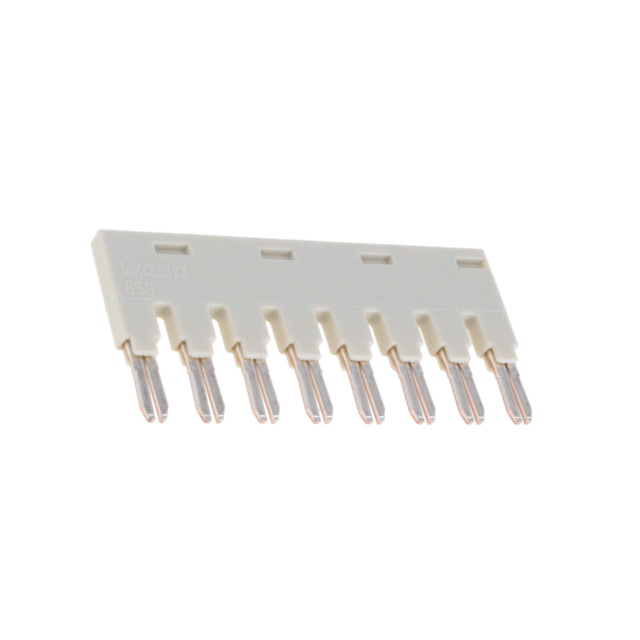

JUMPER (BUSBAR), JUMPER, WAGO SPST RELAY MODULES 857 SERIES, 8 POSITIONS

Search across all available documentation for this part.

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER, WAGO SPST RELAY MODULES 857 SERIES, 8 POSITIONS

Technical Specifications

Parameters and characteristics for this part

Specification	859-408

Color	Gray
For Use With/Related Products	Terminal Blocks
Number of Positions	8
Style	Flat Pins
Type	Terminal Block, Cross Connection

Part	Number of Positions	Style	Color	Type	For Use With/Related Products	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	DC Voltage - Input (Max) [Max]	Efficiency	Applications	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Features	DC Voltage - Input (Min) [Min]	Number of Outputs	Release Time	Must Operate Voltage	Switching Voltage	Load - Max Switching [Max]	Mounting Type	Coil Resistance	Operate Time	Contact Rating (Current)	Coil Type	Contact Form	Relay Type	Coil Voltage	Termination Style	Coil Current	Contact Material
WAGO Corporation 859-402	2	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-405		Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-404	4	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-406	6	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-403		Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-408	8	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-802						508	55 °C	-25 °C	DC	30 V	85 %	Industrial	10 V	CE UL	500 mA	Adjustable Output	15 V	1
WAGO Corporation 859-304							50 °C	-40 °C								Lighted Indicator			25 ms	20.4 VDC	250 VAC	1250 VA	DIN Rail	2.4 kOhms	15 ms	5 A	Non Latching	SPDT (1 Form C)	General Purpose	24 VDC	Spring Terminal	10 mA	Silver Tin Oxide (AgSnO)
WAGO Corporation 859-525			Gray	End Plate	Terminal Blocks

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Terminal Block, Cross Connection Jumper Flat Pins
