859-402

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER, 857 SERIES SIGNAL CONDITIONERS, 2 POSITIONS, 857 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

859-402

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER, 857 SERIES SIGNAL CONDITIONERS, 2 POSITIONS, 857 SERIES

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	859-402

Color	Gray
For Use With/Related Products	Terminal Blocks
Number of Positions	2
Style	Flat Pins
Type	Terminal Block, Cross Connection

859 Series

Part	Number of Positions	Style	Color	Type	For Use With/Related Products	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	DC Voltage - Input (Max) [Max]	Efficiency	Applications	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Features	DC Voltage - Input (Min) [Min]	Number of Outputs	Release Time	Must Operate Voltage	Switching Voltage	Load - Max Switching [Max]	Mounting Type	Coil Resistance	Operate Time	Contact Rating (Current)	Coil Type	Contact Form	Relay Type	Coil Voltage	Termination Style	Coil Current	Contact Material
WAGO Corporation 859-402	2	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-405		Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-404	4	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-406	6	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-403		Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-408	8	Flat Pins	Gray	Terminal Block Cross Connection	Terminal Blocks
WAGO Corporation 859-802						508	55 °C	-25 °C	DC	30 V	85 %	Industrial	10 V	CE UL	500 mA	Adjustable Output	15 V	1
WAGO Corporation 859-304							50 °C	-40 °C								Lighted Indicator			25 ms	20.4 VDC	250 VAC	1250 VA	DIN Rail	2.4 kOhms	15 ms	5 A	Non Latching	SPDT (1 Form C)	General Purpose	24 VDC	Spring Terminal	10 mA	Silver Tin Oxide (AgSnO)
WAGO Corporation 859-525			Gray	End Plate	Terminal Blocks

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.93
		25	$ 0.76
		100	$ 0.71
		1000	$ 0.52
		5000	$ 0.45
		10000	$ 0.43
Newark	Each	1	$ 0.95
		25	$ 0.90
		100	$ 0.85
		250	$ 0.79
		500	$ 0.74

Description

General part information

859 Series

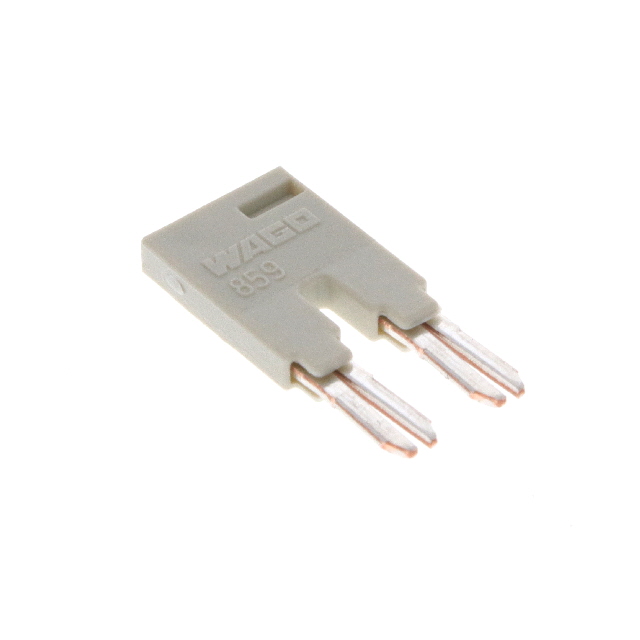

The 859-402 is a 2-position light gray insulated push-in Jumper Bar suitable for use with the rail-mounted terminal blocks with overvoltage protection.
