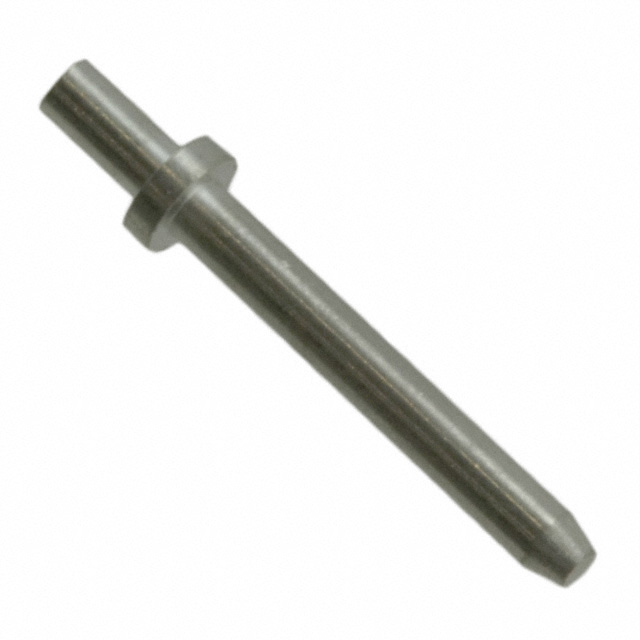

H2173-01 - H2173-01

H2173-01

Active
Harwin Inc.

TERMINAL, TURRET, 1.14MM, NON INSULATED ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
H2173-01 - H2173-01

H2173-01

Active
Harwin Inc.

TERMINAL, TURRET, 1.14MM, NON INSULATED ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationH2173-01
Board Thickness1.6 mm
Board Thickness0.063 in
Contact FinishTin
Contact MaterialBrass
Flange Diameter [diameter]1.77 mm
Flange Diameter [diameter]0.07 in
InsulationNon-Insulated
Length - Above Flange [x]7.62 mm
Length - Above Flange [x]0.3 "
Length - Below Flange [x]0.082 in
Length - Below Flange [x]2.08 mm
Length - Overall [x]0.402 in
Length - Overall [x]10.2 mm
Mounting Hole Diameter [Max]0.045 "
Mounting Hole Diameter [Max]1.14 mm
Mounting Hole Diameter [Min]0.041 in
Mounting Hole Diameter [Min]1.04 mm
Mounting TypeThrough Hole
Pin Size - Above Flange [diameter]0.041 in
Pin Size - Above Flange [diameter]1.04 mm
Terminal StyleSingle End
Terminal TypePC Pin
TerminationSwage
