H2173-05
ActiveHarwin Inc.

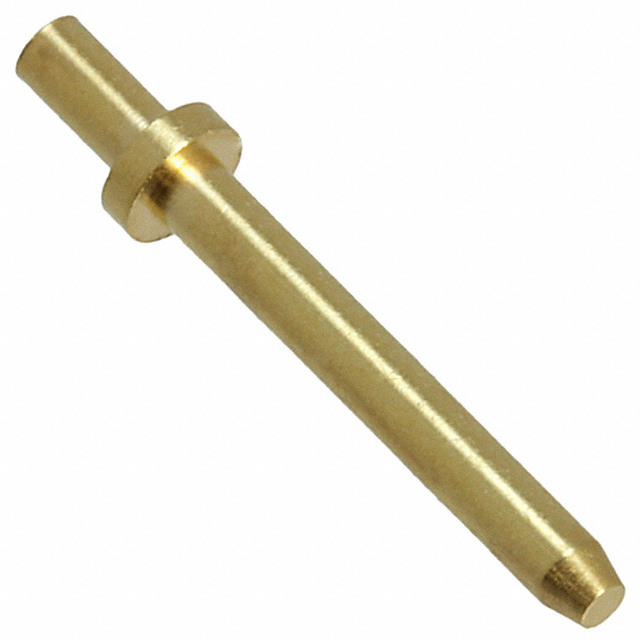

TERMINAL, TURRET, 1.14MM, NON INSULATED
Deep-Dive with AI
Search across all available documentation for this part.
H2173-05
ActiveHarwin Inc.
TERMINAL, TURRET, 1.14MM, NON INSULATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H2173-05 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Contact Finish | Gold |
| Contact Material | Brass |
| Flange Diameter [diameter] | 1.77 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 7.62 mm |
| Length - Above Flange [x] | 0.3 " |
| Length - Below Flange [x] | 0.082 in |
| Length - Below Flange [x] | 2.08 mm |
| Length - Overall [x] | 0.402 in |
| Length - Overall [x] | 10.2 mm |
| Mounting Hole Diameter [Max] | 0.045 " |
| Mounting Hole Diameter [Max] | 1.14 mm |
| Mounting Hole Diameter [Min] | 0.041 in |
| Mounting Hole Diameter [Min] | 1.04 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.041 in |
| Pin Size - Above Flange [diameter] | 1.04 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
H2173 Series
PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia
