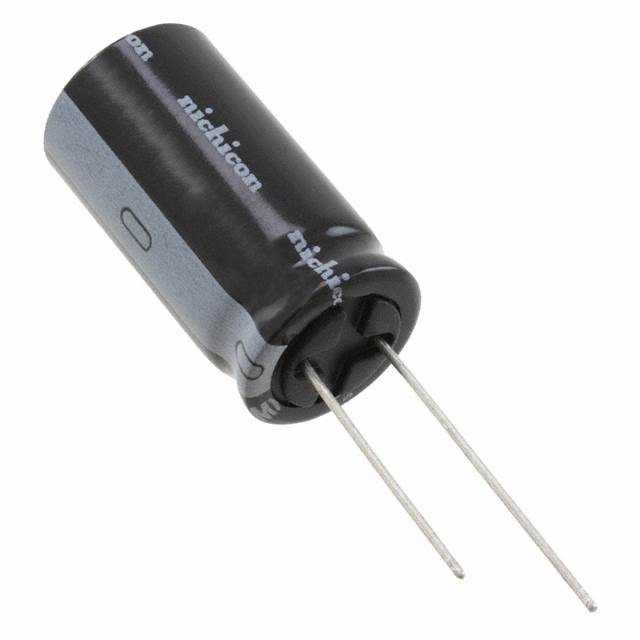

UHW1V332MHD

NICHICON

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 3300UF; 35VDC; Ø16X31.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UHW1V332MHD

NICHICON

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 3300UF; 35VDC; Ø16X31.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UHW1V332MHD

Applications	General Purpose
Capacitance	3.3 mF
Impedance	11 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	4 A
Ripple Current @ Low Frequency	3 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	35 V

uhw Series

Part	Voltage - Rated	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Polarization	Impedance	Ripple Current @ High Frequency	Package / Case	Capacitance	Tolerance	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON UHW1V222MHD	35 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	11 mOhms	4.12 A	Radial Can	2200 µF	20 %	10000 Hrs	37.5 mm	1.476 in	0.492 in	12.5 mm	3.09 A
NICHICON UHW1C122MPD6	16 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2 A	Radial Can	1.2 mF	20 %	10000 Hrs			0.394 in	10 mm	1.2 A	0.689 in	17.5 mm
NICHICON UHW2A681MHD	100 V	7.5 mm	0.295 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2.86 A	Radial Can	680 µF	20 %	10000 Hrs	37.5 mm	1.476 in	0.63 in	16 mm	1.716 A
NICHICON UHW1J391MHD6	63 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	65 mOhms	1.99 A	Radial Can	390 µF	20 %	10000 Hrs			0.492 in	12.5 mm	995 mA	0.846 in	21.5 mm
NICHICON UHW1E821MPD6	25 VDC	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2 A	Radial Can	820 µF	20 %	10000 Hrs			0.394 in	10 mm	1.2 A	0.689 in	17.5 mm
NICHICON UHW1A122MPD	10 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2 A	Radial Can	1.2 mF	20 %	10000 Hrs			0.394 in	10 mm	1.2 A	0.689 in	17.5 mm
NICHICON UHW1E562MHD	25 VDC	7.5 mm	0.295 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	10 mOhms	4.2 A	Radial Can	5.6 mF	20 %	10000 Hrs	37.5 mm	1.476 in	0.63 in	16 mm	3.36 A
NICHICON UHW2A121MPD	100 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	72 mOhms	1.62 A	Radial Can	120 µF	20 %	10000 Hrs	26.5 mm	1.043 in	0.394 in	10 mm	648 mA
NICHICON UHW1A562MHD	10 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	11 mOhms	4.12 A	Radial Can	5.6 mF	20 %	10000 Hrs	37.5 mm	1.476 in	0.492 in	12.5 mm	3.296 A
NICHICON UHW1V332MHD	35 V	7.5 mm	0.295 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	11 mOhms	4 A	Radial Can	3.3 mF	20 %	10000 Hrs			0.63 in	16 mm	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.30
		10	$ 2.53
		50	$ 2.29
		300	$ 1.70
		600	$ 1.54
		1200	$ 1.44
		2700	$ 1.38
		5100	$ 1.36
Newark	Each	100	$ 1.88
		500	$ 1.71
		1000	$ 1.51
		2500	$ 1.41
TME	N/A	300	$ 2.22

Description

General part information

uhw Series

3300 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
