UHW1A562MHD

NICHICON

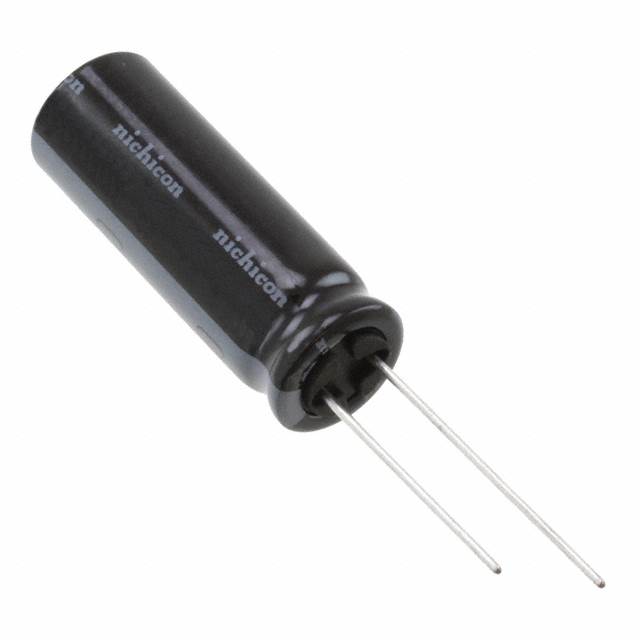

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 5600UF; 10VDC; Ø12.5X35.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UHW1A562MHD

NICHICON

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 5600UF; 10VDC; Ø12.5X35.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UHW1A562MHD

Applications	General Purpose
Capacitance	5.6 mF
Height - Seated (Max) [Max] [z]	37.5 mm
Height - Seated (Max) [Max] [z]	1.476 in
Impedance	11 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	4.12 A
Ripple Current @ Low Frequency	3.296 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	10 V

uhw Series

Part	Voltage - Rated	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Polarization	Impedance	Ripple Current @ High Frequency	Package / Case	Capacitance	Tolerance	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON UHW1V222MHD	35 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	11 mOhms	4.12 A	Radial Can	2200 µF	20 %	10000 Hrs	37.5 mm	1.476 in	0.492 in	12.5 mm	3.09 A
NICHICON UHW1C122MPD6	16 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2 A	Radial Can	1.2 mF	20 %	10000 Hrs			0.394 in	10 mm	1.2 A	0.689 in	17.5 mm
NICHICON UHW2A681MHD	100 V	7.5 mm	0.295 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2.86 A	Radial Can	680 µF	20 %	10000 Hrs	37.5 mm	1.476 in	0.63 in	16 mm	1.716 A
NICHICON UHW1J391MHD6	63 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	65 mOhms	1.99 A	Radial Can	390 µF	20 %	10000 Hrs			0.492 in	12.5 mm	995 mA	0.846 in	21.5 mm
NICHICON UHW1E821MPD6	25 VDC	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2 A	Radial Can	820 µF	20 %	10000 Hrs			0.394 in	10 mm	1.2 A	0.689 in	17.5 mm
NICHICON UHW1A122MPD	10 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	30 mOhms	2 A	Radial Can	1.2 mF	20 %	10000 Hrs			0.394 in	10 mm	1.2 A	0.689 in	17.5 mm
NICHICON UHW1E562MHD	25 VDC	7.5 mm	0.295 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	10 mOhms	4.2 A	Radial Can	5.6 mF	20 %	10000 Hrs	37.5 mm	1.476 in	0.63 in	16 mm	3.36 A
NICHICON UHW2A121MPD	100 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	72 mOhms	1.62 A	Radial Can	120 µF	20 %	10000 Hrs	26.5 mm	1.043 in	0.394 in	10 mm	648 mA
NICHICON UHW1A562MHD	10 V	5 mm	0.197 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	11 mOhms	4.12 A	Radial Can	5.6 mF	20 %	10000 Hrs	37.5 mm	1.476 in	0.492 in	12.5 mm	3.296 A
NICHICON UHW1V332MHD	35 V	7.5 mm	0.295 in	Through Hole	-40 °C	105 ░C	General Purpose	Polar	11 mOhms	4 A	Radial Can	3.3 mF	20 %	10000 Hrs			0.63 in	16 mm	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.72
		10	$ 1.32
Newark	Each	500	$ 1.24
		1000	$ 1.08
		2500	$ 0.97
TME	N/A	500	$ 1.54

Description

General part information

uhw Series

5600 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
