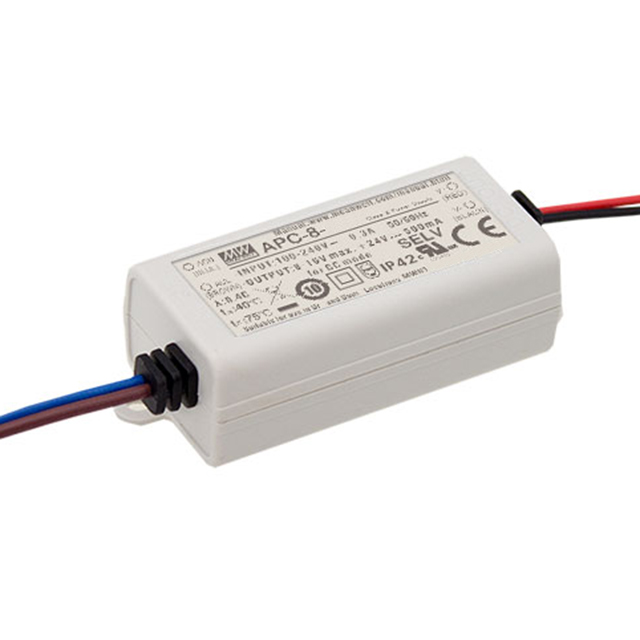

APC-8-250

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 16-32V 250MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APC-8-250

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 16-32V 250MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APC-8-250

Approval Agency	CCC, CE, cURus
Current - Output (Max) [Max]	250 mA
Efficiency	82.5 %
Features	SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Power (Watts)	8 W
Ratings	IP42
Size / Dimension [x]	2.36 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	30 mm
Size / Dimension [y]	1.18 in
Size / Dimension [z]	0.93 in
Size / Dimension [z]	23.5 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	264 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	32 VDC
Voltage - Output [Min]	16 V

APC-8 Series

Part	Type	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Topology	Voltage - Isolation	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Input (Max) [Max]	Features	Ratings	Termination Style
MEAN WELL USA Inc. APC-8E-500	Constant Current	Chassis Mount	1	500 mA	70 °C	-30 ░C	79 %	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	16 V	8 V	8 W	AC DC Converter	3750 V	180 VAC	CB CE ENEC	264 VAC	SCP	IP42	Wire Leads
MEAN WELL USA Inc. APC-8E-350	Constant Current	Chassis Mount	1	350 mA	70 °C	-30 ░C	80.5 %	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	23 V	11 V	8 W	AC DC Converter	3750 V	180 VAC	CB CE ENEC	264 VAC	SCP	IP42	Wire Leads
MEAN WELL USA Inc. APC-8-700	Constant Current	Chassis Mount	1	700 mA	70 °C	-30 ░C	80 %	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	11 V	6 V	8 W	AC DC Converter	3750 V	90 VAC	CCC CE cURus	264 VAC	SCP	IP42	Wire Leads
MEAN WELL USA Inc. APC-8-250	Constant Current	Chassis Mount	1	250 mA	70 °C	-30 ░C	82.5 %	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	32 VDC	16 V	8 W	AC DC Converter	3750 V	90 VAC	CCC CE cURus	264 VAC	SCP	IP42	Wire Leads
MEAN WELL USA Inc. APC-8-350	Constant Current	Chassis Mount	1	350 mA	70 °C	-30 ░C	81.5 %	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	23 V	11 V	8 W	AC DC Converter	3750 V	90 VAC	CCC CE cURus	264 VAC	SCP	IP42	Wire Leads
MEAN WELL USA Inc. APC-8E-700	Constant Current	Chassis Mount	1	700 mA	70 °C	-30 ░C	77.5 %	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	11 V	6 V	8 W	AC DC Converter	3750 V	180 VAC	CB CE ENEC	264 VAC	SCP	IP42	Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.10
		5	$ 4.90
		10	$ 4.70
		25	$ 4.50

Description

General part information

APC-8 Series

250mA 16 ~ 32V Constant Current LED Driver AC DC Converter Topology 1 Output
