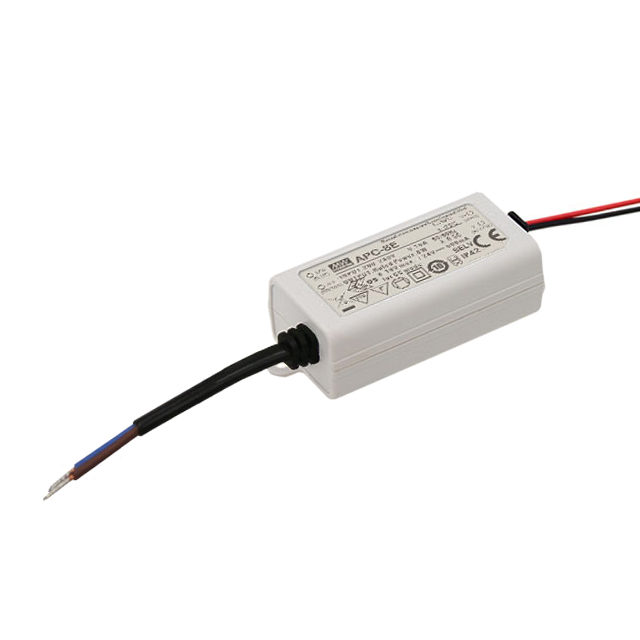

APC-8E-700
ObsoleteMEAN WELL USA Inc.
LED DRIVER CC AC/DC 6-11V 700MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APC-8E-700
ObsoleteMEAN WELL USA Inc.
LED DRIVER CC AC/DC 6-11V 700MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APC-8E-700 |
|---|---|
| Approval Agency | CB, CE, ENEC |
| Current - Output (Max) [Max] | 700 mA |
| Efficiency | 77.5 % |
| Features | SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 8 W |
| Ratings | IP42 |
| Size / Dimension [x] | 2.36 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [z] | 0.93 in |
| Size / Dimension [z] | 23.5 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 11 V |
| Voltage - Output [Min] | 6 V |
APC-8 Series
| Part | Type | Mounting Type | Number of Outputs | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output [Max] | Voltage - Output [Min] | Power (Watts) | Topology | Voltage - Isolation | Voltage - Input (Min) [Min] | Approval Agency | Voltage - Input (Max) [Max] | Features | Ratings | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | Constant Current | Chassis Mount | 1 | 500 mA | 70 °C | -30 ░C | 79 % | 2.36 in | 60 mm | 30 mm | 1.18 in | 0.93 in | 23.5 mm | 16 V | 8 V | 8 W | AC DC Converter | 3750 V | 180 VAC | CB CE ENEC | 264 VAC | SCP | IP42 | Wire Leads |
MEAN WELL USA Inc. | Constant Current | Chassis Mount | 1 | 350 mA | 70 °C | -30 ░C | 80.5 % | 2.36 in | 60 mm | 30 mm | 1.18 in | 0.93 in | 23.5 mm | 23 V | 11 V | 8 W | AC DC Converter | 3750 V | 180 VAC | CB CE ENEC | 264 VAC | SCP | IP42 | Wire Leads |
MEAN WELL USA Inc. | Constant Current | Chassis Mount | 1 | 700 mA | 70 °C | -30 ░C | 80 % | 2.36 in | 60 mm | 30 mm | 1.18 in | 0.93 in | 23.5 mm | 11 V | 6 V | 8 W | AC DC Converter | 3750 V | 90 VAC | CCC CE cURus | 264 VAC | SCP | IP42 | Wire Leads |
MEAN WELL USA Inc. | Constant Current | Chassis Mount | 1 | 250 mA | 70 °C | -30 ░C | 82.5 % | 2.36 in | 60 mm | 30 mm | 1.18 in | 0.93 in | 23.5 mm | 32 VDC | 16 V | 8 W | AC DC Converter | 3750 V | 90 VAC | CCC CE cURus | 264 VAC | SCP | IP42 | Wire Leads |
MEAN WELL USA Inc. | Constant Current | Chassis Mount | 1 | 350 mA | 70 °C | -30 ░C | 81.5 % | 2.36 in | 60 mm | 30 mm | 1.18 in | 0.93 in | 23.5 mm | 23 V | 11 V | 8 W | AC DC Converter | 3750 V | 90 VAC | CCC CE cURus | 264 VAC | SCP | IP42 | Wire Leads |
MEAN WELL USA Inc. | Constant Current | Chassis Mount | 1 | 700 mA | 70 °C | -30 ░C | 77.5 % | 2.36 in | 60 mm | 30 mm | 1.18 in | 0.93 in | 23.5 mm | 11 V | 6 V | 8 W | AC DC Converter | 3750 V | 180 VAC | CB CE ENEC | 264 VAC | SCP | IP42 | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
APC-8 Series
700mA 6 ~ 11V Constant Current LED Driver AC DC Converter Topology 1 Output
