1424531

Active

Phoenix Contact

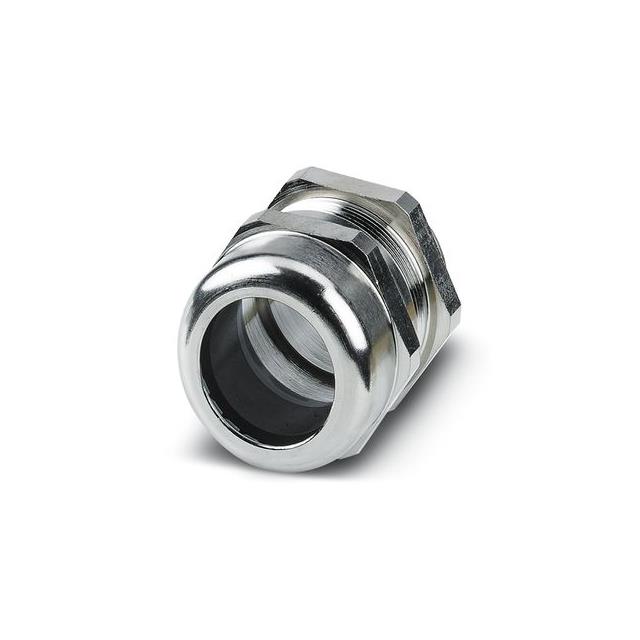

CABLE GLAND 37-53MM M63 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 37-53MM M63 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1424531

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	2.087 in
Outside Cable Diameter (Max) [Max] [diameter]	53 mm
Outside Cable Diameter (Min) [Min] [diameter]	37 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.457 in
Thread Length	10 mm
Thread Length	0.394 in
Type	Cable Gland

Part	Thread Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Includes	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1411139	M63	Polyamide (PA) Nylon	1.339 in	34 mm	Cable Gland	Black	100 °C	-40 °C	0.709 in	18.01 mm	44 mm	1.732 in	Seal	IP66/IP68
Phoenix Contact 1411169	M63	Brass Nickel Plated	1.339 in	34 mm	Cable Gland	Silver	100 °C	-40 °C	0.551 in	14 mm	44 mm	1.732 in	O-Ring Seal	IP66 IP68 IP69
Phoenix Contact 1424531		Brass Nickel Plated	1.457 in	37 mm	Cable Gland	Silver	100 °C	-40 °C	0.394 in	10 mm			O-Ring Seal	IP66 IP68 IP69	2.087 in	53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M63x1.5 Silver
