1411169

Active

Phoenix Contact

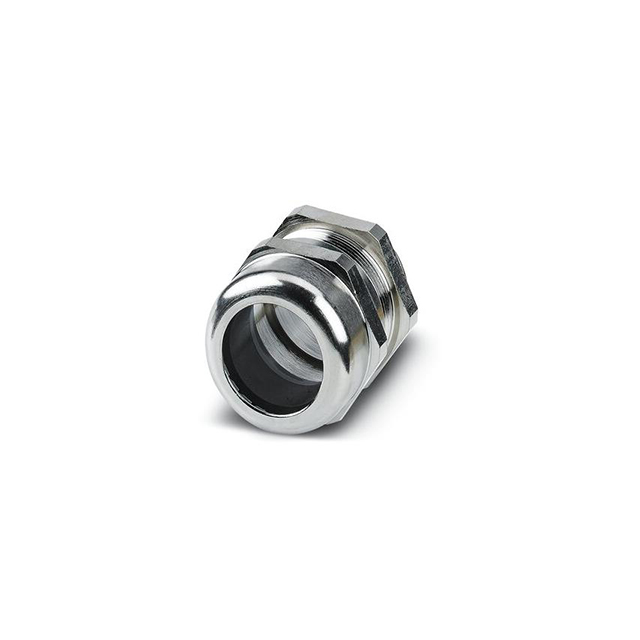

CABLE GLAND 34-44MM M63 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 34-44MM M63 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1411169

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	44 mm
Outside Cable Diameter (Max) [Max]	1.732 in
Outside Cable Diameter (Min) [Min] [diameter]	1.339 in
Outside Cable Diameter (Min) [Min] [diameter]	34 mm
Thread Length	14 mm
Thread Length	0.551 in
Thread Size	M63
Type	Cable Gland

Part	Thread Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Includes	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1411139	M63	Polyamide (PA) Nylon	1.339 in	34 mm	Cable Gland	Black	100 °C	-40 °C	0.709 in	18.01 mm	44 mm	1.732 in	Seal	IP66/IP68
Phoenix Contact 1411169	M63	Brass Nickel Plated	1.339 in	34 mm	Cable Gland	Silver	100 °C	-40 °C	0.551 in	14 mm	44 mm	1.732 in	O-Ring Seal	IP66 IP68 IP69
Phoenix Contact 1424531		Brass Nickel Plated	1.457 in	37 mm	Cable Gland	Silver	100 °C	-40 °C	0.394 in	10 mm			O-Ring Seal	IP66 IP68 IP69	2.087 in	53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.65
LCSC	Piece	1	$ 24.82

General part information

Cable Gland Brass, Nickel Plated M63 Silver
