EXH2E805HRPT

Obsolete

NICHICON

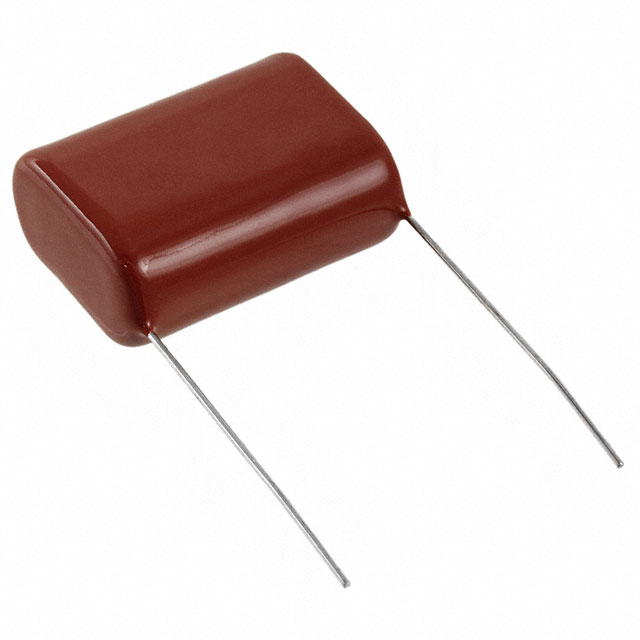

CAP FILM 8UF -5% +10% 250VAC RAD

Search across all available documentation for this part.

Obsolete

NICHICON

CAP FILM 8UF -5% +10% 250VAC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	EXH2E805HRPT

Applications	Motor Run
Capacitance	8 µF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	32.5 mm
Lead Spacing	1.28 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial
Size / Dimension [x]	1.417 in
Size / Dimension [x]	36 mm
Size / Dimension [y]	0.61 in
Size / Dimension [y]	15.5 mm
Termination	PC Pins
Tolerance [Max]	10 %
Tolerance [Min]	-5 %
Voltage Rating - AC	250 V

Part	Applications	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage Rating - AC	Tolerance [Min]	Tolerance [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON EXH2E705HRPT	Motor Run	7 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %	1.083 in	27.5 mm	Metallized Polypropylene (PP)	PC Pins	14.5 mm	0.571 in	1.417 in	36 mm
NICHICON EXH2E106HRPT	Motor Run	10 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %	1.201 in	30.5 mm	Metallized Polypropylene (PP)	PC Pins	17.5 mm	0.689 in	1.417 in	36 mm
NICHICON EXH2E805HRPT	Motor Run	8 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %			Metallized Polypropylene (PP)	PC Pins	15.5 mm	0.61 in	1.417 in	36 mm
NICHICON EXH2E605HRPT	Motor Run	6 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %			Metallized Polypropylene (PP)	PC Pins	14 mm	0.551 in	1.417 in	36 mm	25.5 mm	1.004 in
NICHICON EXH2E905HRPT	Motor Run	9 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %	1.161 in	29.5 mm	Metallized Polypropylene (PP)	PC Pins	16.5 mm	0.65 in	1.417 in	36 mm
