EXH2E705HRPT

Obsolete

NICHICON

CAP FILM 7UF -5% +10% 250VAC RAD

Search across all available documentation for this part.

Obsolete

NICHICON

CAP FILM 7UF -5% +10% 250VAC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	EXH2E705HRPT

Applications	Motor Run
Capacitance	7 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	1.083 in
Height - Seated (Max) [Max] [z]	27.5 mm
Lead Spacing	32.5 mm
Lead Spacing	1.28 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial
Size / Dimension [x]	1.417 in
Size / Dimension [x]	36 mm
Size / Dimension [y]	14.5 mm
Size / Dimension [y]	0.571 in
Termination	PC Pins
Tolerance [Max]	10 %
Tolerance [Min]	-5 %
Voltage Rating - AC	250 V

Part	Applications	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage Rating - AC	Tolerance [Min]	Tolerance [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON EXH2E705HRPT	Motor Run	7 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %	1.083 in	27.5 mm	Metallized Polypropylene (PP)	PC Pins	14.5 mm	0.571 in	1.417 in	36 mm
NICHICON EXH2E106HRPT	Motor Run	10 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %	1.201 in	30.5 mm	Metallized Polypropylene (PP)	PC Pins	17.5 mm	0.689 in	1.417 in	36 mm
NICHICON EXH2E805HRPT	Motor Run	8 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %			Metallized Polypropylene (PP)	PC Pins	15.5 mm	0.61 in	1.417 in	36 mm
NICHICON EXH2E605HRPT	Motor Run	6 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %			Metallized Polypropylene (PP)	PC Pins	14 mm	0.551 in	1.417 in	36 mm	25.5 mm	1.004 in
NICHICON EXH2E905HRPT	Motor Run	9 µF	32.5 mm	1.28 in	Through Hole	-25 °C	85 °C	Radial	250 V	-5 %	10 %	1.161 in	29.5 mm	Metallized Polypropylene (PP)	PC Pins	16.5 mm	0.65 in	1.417 in	36 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

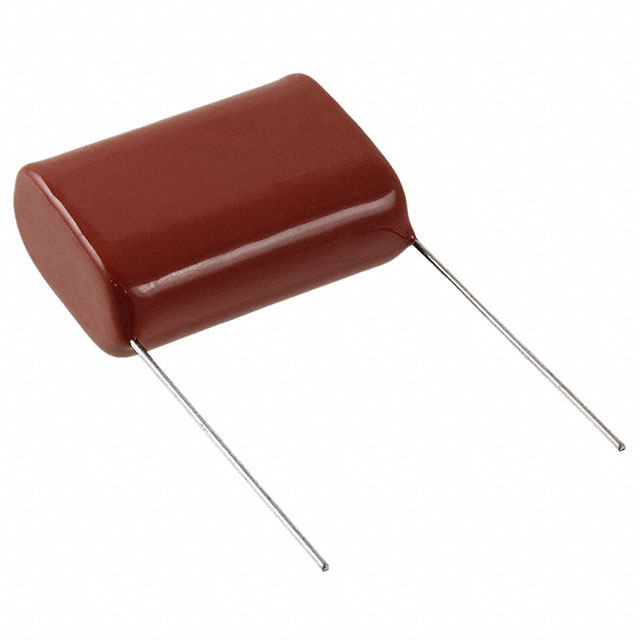

7 µF Film Capacitor 250V Polypropylene (PP), Metallized Radial
