MPQ3367AGRE-AEC1-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC LED DRV RGLTR PWM 150MA 24QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ3367AGRE-AEC1-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC LED DRV RGLTR PWM 150MA 24QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ3367AGRE-AEC1-P |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 150 mA |
| Dimming | PWM, Analog, I2C |
| Frequency [Max] | 2.42 MHz |
| Frequency [Min] | 340 kHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

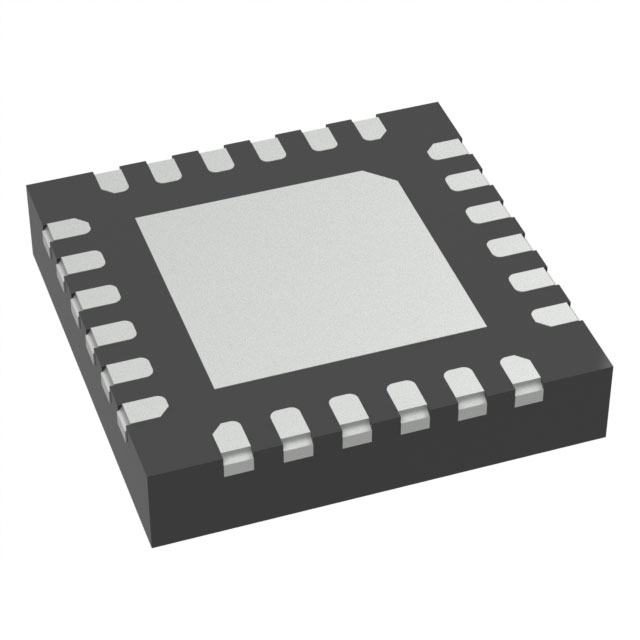

| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN-WF (4x4) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 36 V |
| Voltage - Supply (Min) [Min] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.71 | |
| 10 | $ 4.23 | |||
| 25 | $ 4.00 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.29 | |||
| Digi-Reel® | 1 | $ 4.71 | ||
| 10 | $ 4.23 | |||
| 25 | $ 4.00 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.29 | |||
| Tape & Reel (TR) | 500 | $ 2.95 | ||
| 1000 | $ 2.49 | |||
| 2500 | $ 2.36 | |||
Description
General part information
MPQ3367 Series
LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) Analog, I2C, PWM Dimming 150mA 24-QFN-WF (4x4)
