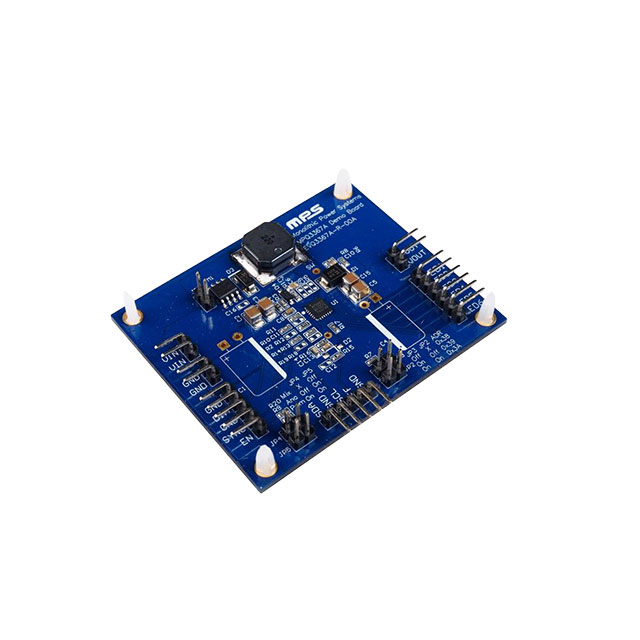

EVQ3367A-R-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ3367A

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ3367A

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Utilized IC / Part	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output / Channel	Features	Type	Number of Outputs	Frequency [Max]	Frequency [Min]	Topology	Supplier Device Package	Package / Case	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Min) [Min]	Applications	Grade	Mounting Type	Voltage - Supply (Max) [Max]
MONOLITHIC POWER SYSTEMS (MPS) EVQ3367A-R-00A	Board(s)	MPQ3367A	6 Outputs	3.5 V	36 V	150 mA	Dimmable
MONOLITHIC POWER SYSTEMS (MPS) MPQ3367AGRE-AEC1-Z						150 mA		DC DC Regulator	6	2.42 MHz	340 kHz	Step-Up (Boost)	24-QFN-WF (4x4)	24-VFQFN Exposed Pad	Analog I2C PWM	-40 °C	125 ¯C	3.5 V	Backlight	Automotive	Surface Mount Wettable Flank	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ3367AGR-AEC1-Z						150 mA		DC DC Regulator	6	2.42 MHz	340 kHz	Step-Up (Boost)	24-QFN (4x4)	24-VFQFN Exposed Pad	Analog I2C PWM	-40 °C	125 ¯C	3.5 V	Backlight	Automotive	Surface Mount	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ3367AGRE-AEC1-P						150 mA		DC DC Regulator	6	2.42 MHz	340 kHz	Step-Up (Boost)	24-QFN-WF (4x4)	24-VFQFN Exposed Pad	Analog I2C PWM	-40 °C	125 ¯C	3.5 V	Backlight	Automotive	Surface Mount Wettable Flank	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00

General part information

MPQ3367A - 6 Non-Isolated Outputs pval(5) LED Driver Evaluation Board
