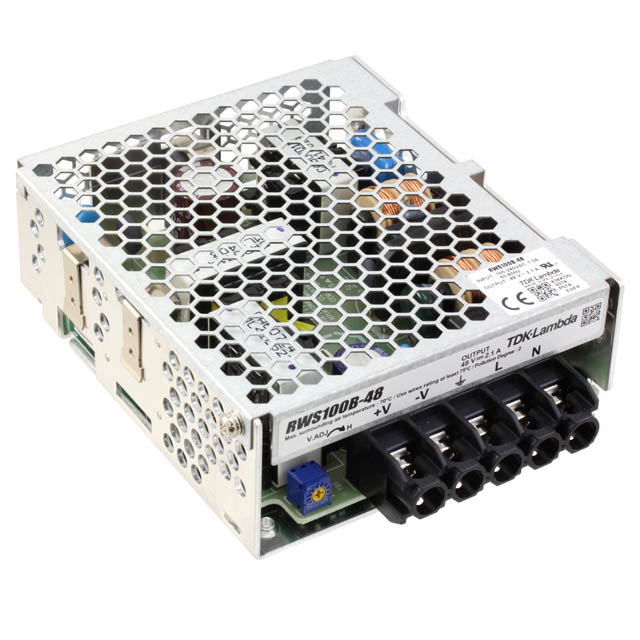

RWS100B-48/CO2

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 100.8 W, 48 V, 2.1 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 100.8 W, 48 V, 2.1 A

Technical Specifications

Parameters and characteristics for this part

Specification	RWS100B-48/CO2

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	2.1 A
Efficiency	87 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	100 W
Size / Dimension [x]	4.25 in
Size / Dimension [x]	108 mm
Size / Dimension [y]	94 mm
Size / Dimension [y]	3.7 in
Size / Dimension [z]	1.54 "
Size / Dimension [z]	39 mm
Type	Conformal Coated, Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Type	Number of Outputs	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Power (Watts)	Efficiency	Features	Approval Agency	Applications	Mounting Type	Voltage - Isolation
TDK-LAMBDA RWS100B-5	Enclosed	1	5 V	1.54 "	94 mm	4.25 in	3.7 in	108 mm	39 mm	85 VAC	265 VAC	-20 °C	70 °C	14 A	100 W	79 %	Adjustable Output DC Input Capable Universal Input	CE	ITE (Commercial)	Chassis Mount	3000 V
TDK-LAMBDA RWS100B-48/CO2	Conformal Coated Enclosed	1	48 V	1.54 "	94 mm	4.25 in	3.7 in	108 mm	39 mm	85 VAC	265 VAC	-20 °C	70 °C	2.1 A	100 W	87 %	Adjustable Output DC Input Capable Universal Input	CE	ITE (Commercial)	Chassis Mount	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 48V 85 ~ 265 VAC Input
