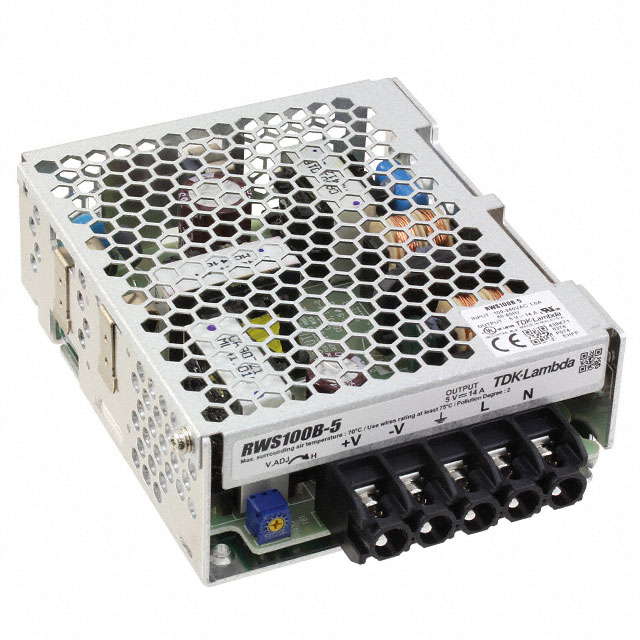

RWS100B-5
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 70 W, 5 V, 14 A
Deep-Dive with AI
Search across all available documentation for this part.
RWS100B-5
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 70 W, 5 V, 14 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RWS100B-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 14 A |
| Efficiency | 79 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 4.25 in |
| Size / Dimension [x] | 108 mm |
| Size / Dimension [y] | 94 mm |
| Size / Dimension [y] | 3.7 in |
| Size / Dimension [z] | 1.54 " |
| Size / Dimension [z] | 39 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RWS100 Series
The RWS-100B-5 is a single-output Power Supply suitable for general purpose applications. It is the simple function model who this product maintains basic performance and planned the optimization of the addition function.
