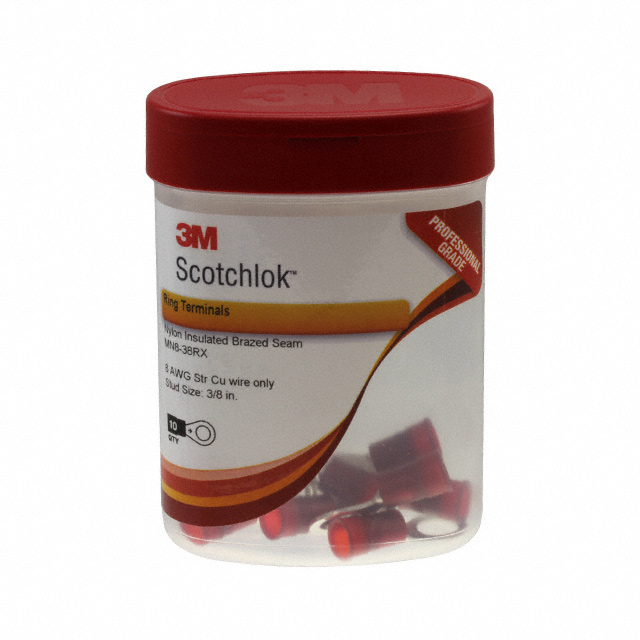

MN8-38RX-BOTTLE

Active

3M (TC)

CONNRINGCIRC8AWG#3/8 10PC/BOTTLE

Search across all available documentation for this part.

Active

3M (TC)

CONNRINGCIRC8AWG#3/8 10PC/BOTTLE

Technical Specifications

Parameters and characteristics for this part

Specification	MN8-38RX-BOTTLE

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Insulated
Insulation Diameter [diameter]	8.64 mm
Insulation Diameter [diameter]	0.34 in
Length - Overall [x]	1.38 in
Length - Overall [x]	35.05 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	3/8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	50 mils
Thickness	0.05 in
Width - Outer Edges [x]	14.99 mm
Width - Outer Edges [x]	0.59 in
Wire Gauge	8 AWG

Part	Stud/Tab Size	Terminal Type	Insulation	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Thickness	Thickness	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Wire Gauge	Material - Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges
3M (TC) MN8-14R/SX-BOTTLE	0.25 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)
3M (TC) MN8-516RK	0.3125 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)	14.99 mm	0.59 in
3M (TC) MN8-10R/SK	10 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)
3M (TC) MN8-38RX-BOTTLE		Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)	14.99 mm	0.59 in	3/8 Stud
3M (TC) MN8-12R/SK		Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.72 in	43.69 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)			1/2 Stud	20.57 mm	0.81 in
3M (TC) MN8-14R/SK	0.25 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 3/8 Stud Circular 8 AWG Crimp
