MN8-10R/SK

Active

3M (TC)

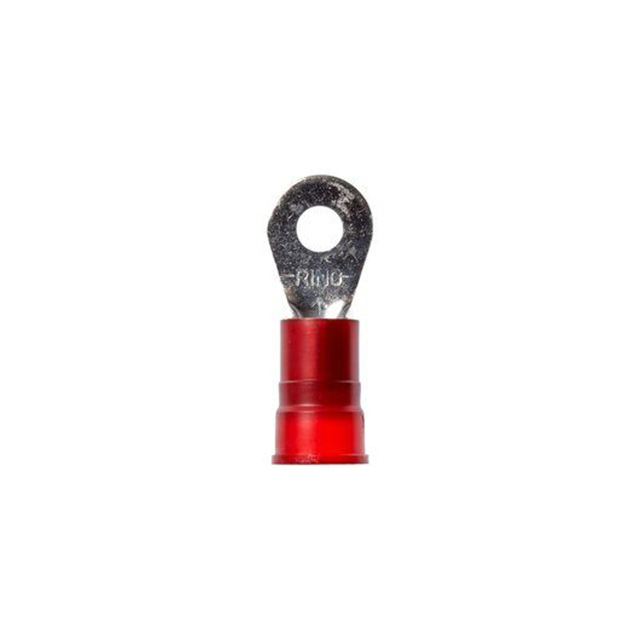

3M SCOTCHLOK MN8-10R/SK NYLON INSULATED BRAZED SEAM STANDARD RING TERMINAL, 10 STUD, 8 AWG, RED, 200/CASE

Search across all available documentation for this part.

Active

3M (TC)

3M SCOTCHLOK MN8-10R/SK NYLON INSULATED BRAZED SEAM STANDARD RING TERMINAL, 10 STUD, 8 AWG, RED, 200/CASE

Technical Specifications

Parameters and characteristics for this part

Specification	MN8-10R/SK

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Insulated
Insulation Diameter [diameter]	8.64 mm
Insulation Diameter [diameter]	0.34 in
Length - Overall [x]	1.26 in
Length - Overall [x]	32 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	50 mils
Thickness	0.05 in
Width - Outer Edges [y]	0.47 in
Width - Outer Edges [y]	11.94 mm
Wire Gauge	8 AWG

Part	Stud/Tab Size	Terminal Type	Insulation	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Thickness	Thickness	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Wire Gauge	Material - Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges
3M (TC) MN8-14R/SX-BOTTLE	0.25 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)
3M (TC) MN8-516RK	0.3125 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)	14.99 mm	0.59 in
3M (TC) MN8-10R/SK	10 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)
3M (TC) MN8-38RX-BOTTLE		Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)	14.99 mm	0.59 in	3/8 Stud
3M (TC) MN8-12R/SK		Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.72 in	43.69 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)			1/2 Stud	20.57 mm	0.81 in
3M (TC) MN8-14R/SK	0.25 Stud	Circular	Insulated	Copper ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 10 Stud Circular 8 AWG Crimp
