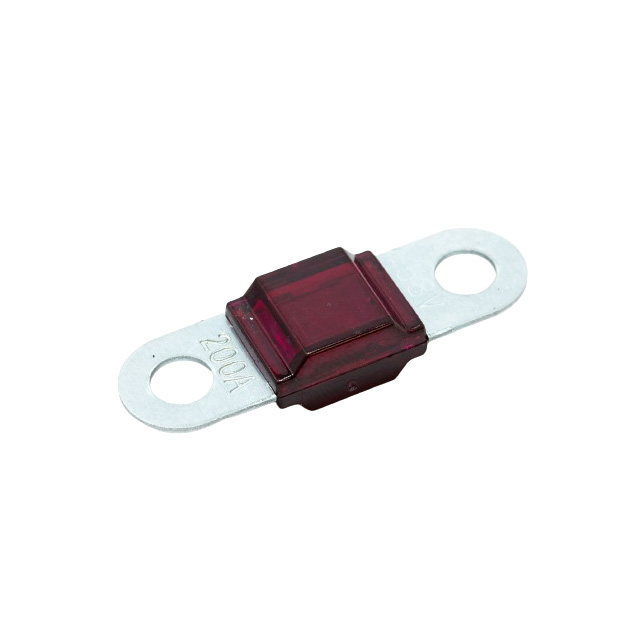

MIDA-200A

Active

OptiFuse

FUSE AUTO 200A 32VDC AUTO LINK

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 200A 32VDC AUTO LINK

Technical Specifications

Parameters and characteristics for this part

Specification	MIDA-200A

Breaking Capacity @ Rated Voltage	1 kA
Color	Violet
Current Rating (Amps)	200 A
Fuse Type	Automotive
Mounting Type	Bolt Mount
Package / Case	Auto Link
Response Time	Fast Blow
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	0.472 "
Size / Dimension [y]	12 mm
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.315 "
Voltage Rating - DC	32 V

Part	Color	Voltage Rating - DC	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Mounting Type	Current Rating (Amps)	Response Time	Fuse Type	Breaking Capacity @ Rated Voltage
OptiFuse MIDA-150A	Gray	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	150 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-50A	Red	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	50 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-100A	Blue	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	100 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-80A	Clear	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	80 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-60A	Yellow	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	60 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-70A	Brown	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	70 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-200A	Violet	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	200 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-125A	Pink	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	125 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-40A	Green	32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	40 A	Fast Blow	Automotive	1 kA
OptiFuse MIDA-30A		32 V	8 mm	0.315 "	0.63 "	0.472 "	12 mm	16 mm	Auto Link	Bolt Mount	30 A	Fast Blow	Automotive	1 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.49

General part information

200 A AC 32 V DC Fuse Automotive Bolt Mount Auto Link
