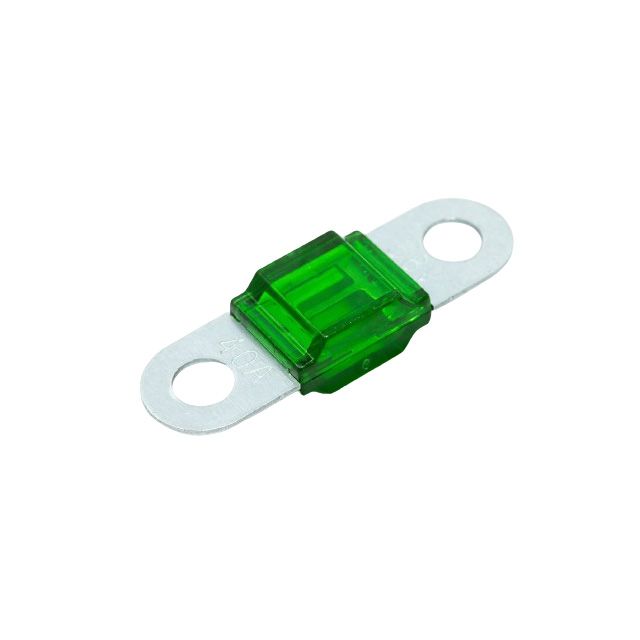

MIDA-40A
ActiveOptiFuse
FUSE AUTO 40A 32VDC AUTO LINK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MIDA-40A
ActiveOptiFuse
FUSE AUTO 40A 32VDC AUTO LINK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MIDA-40A |
|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Green |
| Current Rating (Amps) | 40 A |
| Fuse Type | Automotive |
| Mounting Type | Bolt Mount |
| Package / Case | Auto Link |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [z] | 8 mm |
| Size / Dimension [z] | 0.315 " |
| Voltage Rating - DC | 32 V |
MIDA Series
| Part | Color | Voltage Rating - DC | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Current Rating (Amps) | Response Time | Fuse Type | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse | Gray | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 150 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Red | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 50 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Blue | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 100 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Clear | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 80 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Yellow | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 60 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Brown | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 70 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Violet | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 200 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Pink | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 125 A | Fast Blow | Automotive | 1 kA |
OptiFuse | Green | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 40 A | Fast Blow | Automotive | 1 kA |
OptiFuse | 32 V | 8 mm | 0.315 " | 0.63 " | 0.472 " | 12 mm | 16 mm | Auto Link | Bolt Mount | 30 A | Fast Blow | Automotive | 1 kA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.49 | |
| 10 | $ 2.40 | |||
| 25 | $ 2.31 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.49 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.21 | |||
| 1000 | $ 1.15 | |||
Description
General part information
MIDA Series
40 A AC 32 V DC Fuse Automotive Bolt Mount Auto Link
