A2E250-AM06-01

Active

ebm-papst Inc.

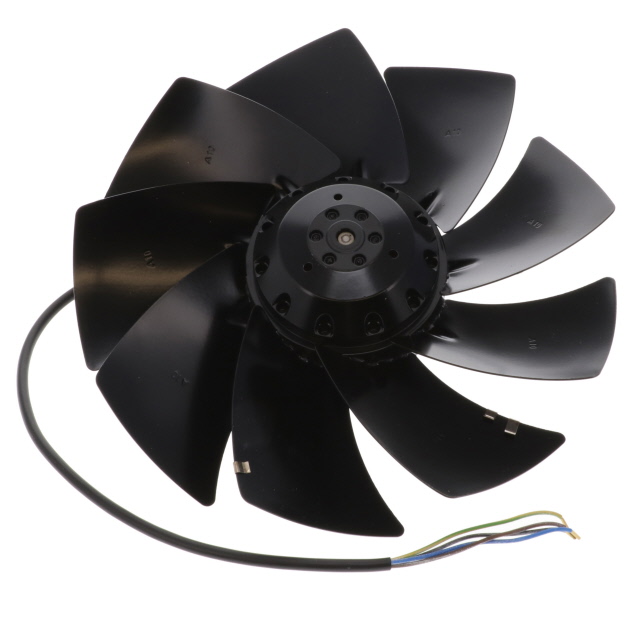

AC AXIAL FAN, 230V, CIRCULAR, 250 MM, 72 MM, BALL BEARING, 1160 CFM

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN, 230V, CIRCULAR, 250 MM, 72 MM, BALL BEARING, 1160 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	A2E250-AM06-01

Air Flow	32.49 m³/min
Air Flow	1160.3 CFM
Approval Agency	CE, EAC
Bearing Type	Ball
Current Rating (Amps)	660 mA
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	150 W
RPM	2600 RPM
Size / Dimension [diameter]	251 mm
Static Pressure	0.341 in H2O
Static Pressure	85 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [y]	74 mm

Part	Size / Dimension [diameter]	Ingress Protection	Current Rating (Amps)	Approval Agency	Fan Type	Width [y]	RPM	Bearing Type	Voltage - Rated	Material - Blade	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Air Flow	Air Flow	Static Pressure	Static Pressure
ebm-papst Inc. A2E250-AL06-01	251 mm	IP44	660 mA	CCC CE EAC	Tubeaxial	75.5 mm	2600 RPM	Ball	230 VAC	Steel	Capacitor Thermal Overload Protector (TOP)	4 Wire Leads	50 °C	-25 °C	-25 °C	50 °C	150 W	30.02 m³/min	1072 CFM	0.341 in H2O	85 Pa
ebm-papst Inc. A2E250-AM06-01	251 mm	IP44	660 mA	CE EAC	Tubeaxial	74 mm	2600 RPM	Ball	230 VAC	Steel	Capacitor Thermal Overload Protector (TOP)	4 Wire Leads	50 °C	-25 °C	-25 °C	50 °C	150 W	32.49 m³/min	1160.3 CFM	0.341 in H2O	85 Pa
ebm-papst Inc. A2E250-AE31-16	250 mm	IP44	1.02 A	CE CSA UL	Tubeaxial	84.5 mm	2500 RPM	Ball	115 VAC	Steel	Capacitor Thermal Overload Protector (TOP)	4 Wire Leads with Splice Terminals	80 C	-25 °C	-25 °C	80 °C	115 W			0.602 in H2O	150 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 251mm Dia Ball 1160.3 CFM (32.49m³/min) 4 Wire Leads
