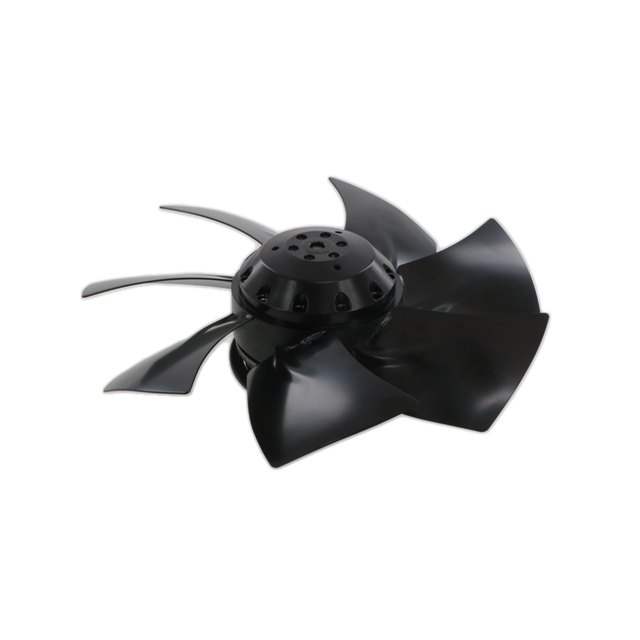

A2E250-AL06-01
Activeebm-papst Inc.
AC AXIAL FAN
Deep-Dive with AI
Search across all available documentation for this part.
A2E250-AL06-01
Activeebm-papst Inc.
AC AXIAL FAN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A2E250-AL06-01 |
|---|---|
| Air Flow | 30.02 m³/min |
| Air Flow | 1072 CFM |
| Approval Agency | CCC, EAC, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 660 mA |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Ingress Protection | IP44 |
| Material - Blade | Steel |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 150 W |
| RPM | 2600 RPM |
| Size / Dimension [diameter] | 251 mm |
| Static Pressure | 0.341 in H2O |
| Static Pressure | 85 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 230 VAC |
| Width [y] | 75.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 222.37 | |
| 10 | $ 204.82 | |||
| 25 | $ 191.65 | |||
| 50 | $ 188.72 | |||
Description
General part information
A2E250 Series
Fan Tubeaxial 230VAC Round - 251mm Dia Ball 1072.0 CFM (30.02m³/min) 4 Wire Leads
