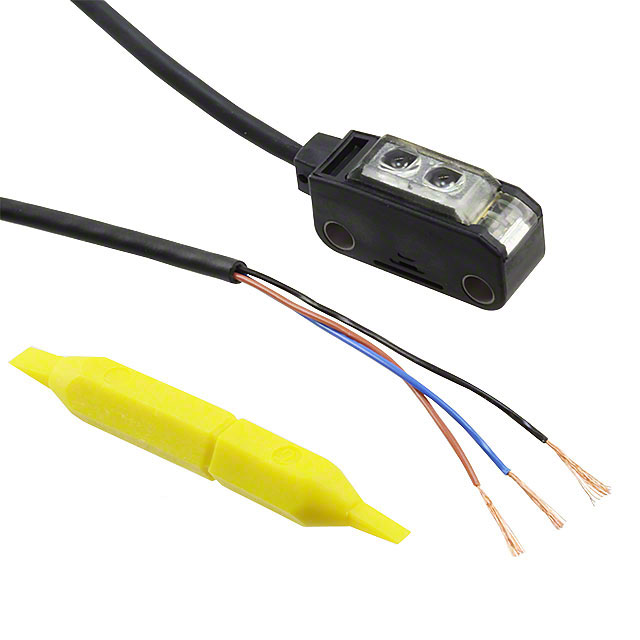

EX-26B

Active

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE 14MM NPN

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE 14MM NPN

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Source	Cable Length	Cable Length	Connection Method	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Sensing Method	Response Time	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]
Panasonic Industrial Automation Sales EX-26B-PN	12 V	24 V	Red LED	78.74 in	2 m	Cable	IP67	55 °C	-25 °C	PNP - Open Collector/Dark-ON	Convergent Reflective	500 µs	0.236 "	0.551 "	14 mm	6 mm
Panasonic Industrial Automation Sales EX-26A-PN	12 V	24 V	Red LED	78.74 in	2 m	Cable	IP67	55 °C	-25 °C	PNP - Open Collector/Light-ON	Convergent Reflective	500 µs	0.236 "	0.551 "	14 mm	6 mm
Panasonic Industrial Automation Sales EX-26B	12 V	24 V	Red LED	78.74 in	2 m	Cable	IP67	55 °C	-25 °C	NPN - Open Collector/Dark-ON	Convergent Reflective	500 µs	0.236 "	0.551 "	14 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective, Convergent Optical Sensor 0.236" ~ 0.551" (6mm ~ 14mm) NPN - Open Collector/Dark-ON

Technical documentation and resources

No documents available
