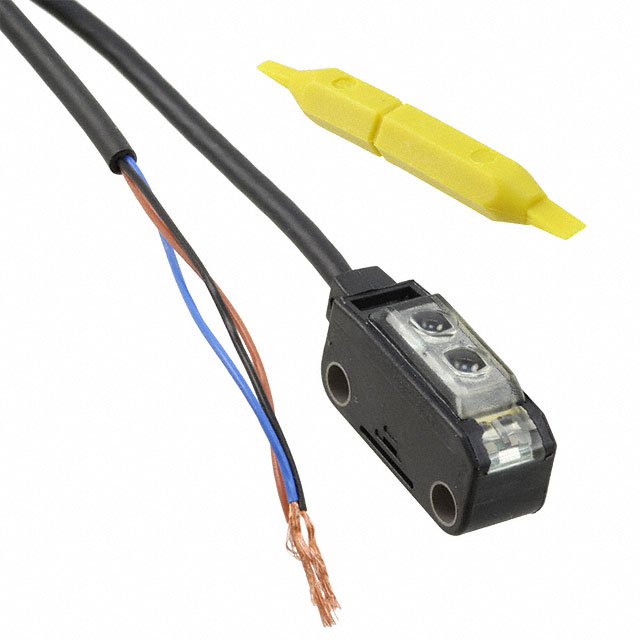

EX-26A-PN
ActivePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 14MM PNP
Deep-Dive with AI
Search across all available documentation for this part.
EX-26A-PN
ActivePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 14MM PNP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EX-26A-PN |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP - Open Collector/Light-ON |
| Response Time | 500 µs |
| Sensing Distance [Max] | 0.551 " |
| Sensing Distance [Max] | 14 mm |
| Sensing Distance [Min] | 0.236 " |
| Sensing Distance [Min] | 6 mm |
| Sensing Method | Convergent, Reflective |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 104.00 | |
| 10 | $ 94.55 | |||
Description
General part information
ex-20 Series
Reflective, Convergent Optical Sensor 0.236" ~ 0.551" (6mm ~ 14mm) PNP - Open Collector/Light-ON
