DELTA12A/X/SMAM/S/S/17

Active

Siretta Ltd

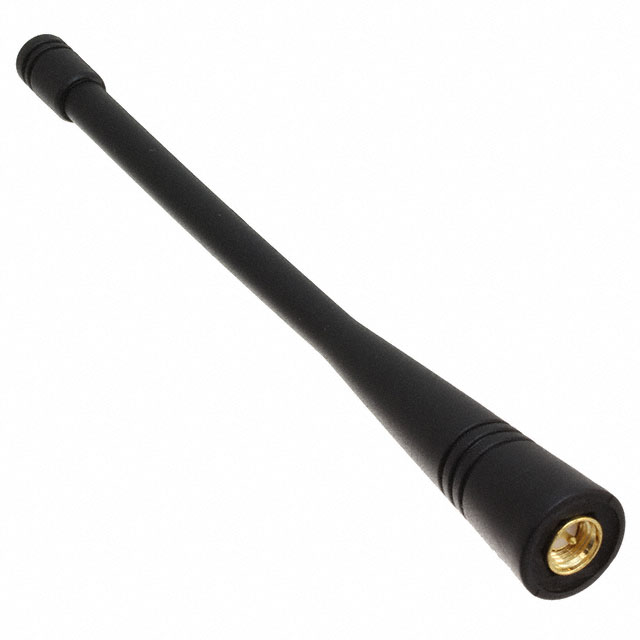

RF ANT 433MHZ/458MHZ WHIP STR

Search across all available documentation for this part.

Active

Siretta Ltd

RF ANT 433MHZ/458MHZ WHIP STR

Technical Specifications

Parameters and characteristics for this part

Part	VSWR	Height (Max) [Max] [z]	Height (Max)	Frequency (Center/Band)	Applications	Gain	RF Family/Standard	Number of Bands	Power - Max [Max]	Antenna Type	Mounting Type	Frequency Group	Frequency Group [Max]	Frequency Group [Min]	Termination
Siretta Ltd DELTA12/X/SMAM/S/S/17	2	5.118 in	130 mm	151 MHz 173 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount	VHF
Siretta Ltd DELTA12A/X/BNCM/S/S/17	2	5.118 in	130 mm	433 MHz 458 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz	BNC Male
Siretta Ltd DELTA12/X/BNCM/S/S/17	2	5.118 in	130 mm	151 MHz 173 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount	VHF			BNC Male
Siretta Ltd DELTA12B/X/BNCM/S/S/17	2	5.118 in	130 mm	869 MHz	ISM	3 dBi	General ISM	1	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz	BNC Male
Siretta Ltd DELTA12A/X/SMAM/S/S/17	2	5.118 in	130 mm	433 MHz 458 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz
Siretta Ltd DELTA12B/X/SMAM/S/S/17 HIGH GAIN	2	5.118 in	130 mm	151 MHz 173 MHz	ISM	3 dBi	General ISM	1	50 W	Whip Straight	Connector Mount	VHF
Siretta Ltd DELTA12C/X/SMAM/S/S/17	2	5.118 in	130 mm	915 MHz	ISM	3 dBi	General ISM	1	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
