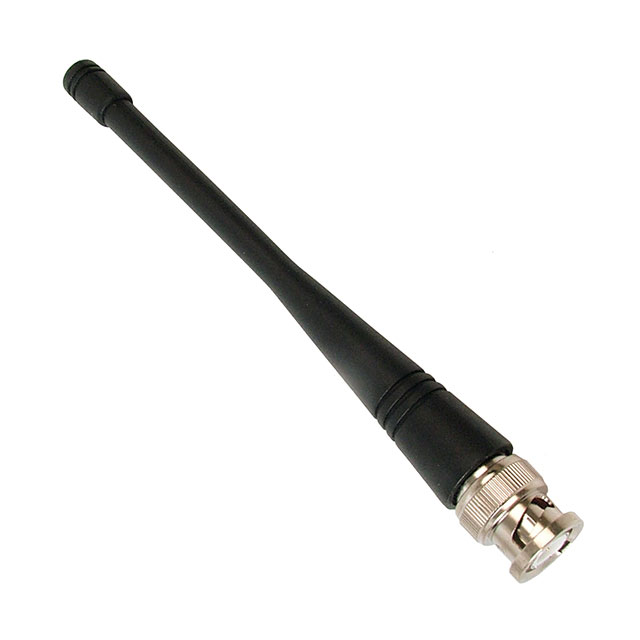

DELTA12B/X/BNCM/S/S/17

Active

Siretta Ltd

RF ANT 869MHZ WHIP STR BNC MALE

Search across all available documentation for this part.

Active

Siretta Ltd

RF ANT 869MHZ WHIP STR BNC MALE

Technical Specifications

Parameters and characteristics for this part

Part	VSWR	Height (Max) [Max] [z]	Height (Max)	Frequency (Center/Band)	Applications	Gain	RF Family/Standard	Number of Bands	Power - Max [Max]	Antenna Type	Mounting Type	Frequency Group	Frequency Group [Max]	Frequency Group [Min]	Termination
Siretta Ltd DELTA12/X/SMAM/S/S/17	2	5.118 in	130 mm	151 MHz 173 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount	VHF
Siretta Ltd DELTA12A/X/BNCM/S/S/17	2	5.118 in	130 mm	433 MHz 458 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz	BNC Male
Siretta Ltd DELTA12/X/BNCM/S/S/17	2	5.118 in	130 mm	151 MHz 173 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount	VHF			BNC Male
Siretta Ltd DELTA12B/X/BNCM/S/S/17	2	5.118 in	130 mm	869 MHz	ISM	3 dBi	General ISM	1	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz	BNC Male
Siretta Ltd DELTA12A/X/SMAM/S/S/17	2	5.118 in	130 mm	433 MHz 458 MHz	ISM	3 dBi	General ISM	2	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz
Siretta Ltd DELTA12B/X/SMAM/S/S/17 HIGH GAIN	2	5.118 in	130 mm	151 MHz 173 MHz	ISM	3 dBi	General ISM	1	50 W	Whip Straight	Connector Mount	VHF
Siretta Ltd DELTA12C/X/SMAM/S/S/17	2	5.118 in	130 mm	915 MHz	ISM	3 dBi	General ISM	1	50 W	Whip Straight	Connector Mount		1 GHz	300 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
