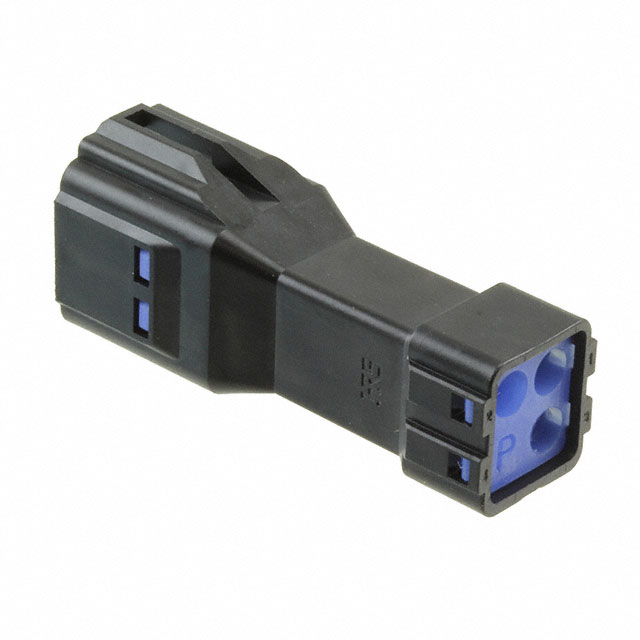

DF63W-3EP-3.96C
ActiveHirose Electric USA, Inc.
CONN PLUG HSG 3POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF63W-3EP-3.96C
ActiveHirose Electric USA, Inc.
CONN PLUG HSG 3POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF63W-3EP-3.96C |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Waterproof (Mated) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.91 | |
| 10 | $ 2.23 | |||
| 25 | $ 2.00 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.56 | |||
| 500 | $ 1.45 | |||
| 1000 | $ 1.35 | |||
| 2500 | $ 1.23 | |||
Description
General part information
DF63W Series
3 Rectangular Connectors - Housings Plug Black 0.156" (3.96mm)
