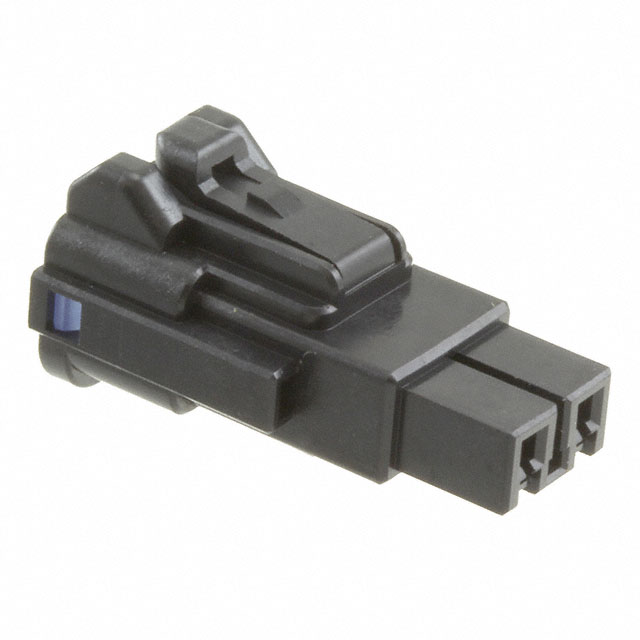

DF63W-2S-3.96C

Active

Hirose Electric USA, Inc.

[ENERBEE ] 3.96MM PITCH COMPACT WATERPROOF FOR INTERNAL POWER SUPPLIES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

[ENERBEE ] 3.96MM PITCH COMPACT WATERPROOF FOR INTERNAL POWER SUPPLIES

Technical Specifications

Parameters and characteristics for this part

Specification	DF63W-2S-3.96C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof (Mated)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm

Part	Pin or Socket	Contact Finish	Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Number of Positions	Fastening Type	Mounting Type	Contact Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Connector Type	Features	Note	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing
Hirose Electric USA, Inc. DF63W-2022SCF	Socket	Tin	Stamped	20 AWG	22 AWG	Crimp
Hirose Electric USA, Inc. DF63W-2S-3.96C						Crimp	2	Latch Lock	Free Hanging (In-Line)	Female Socket	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	1	Black	Receptacle	Waterproof (Mated)	Contacts Not Included	0.156 in	3.96 mm
Hirose Electric USA, Inc. DF63W-2022SC	Socket	Tin	Stamped	20 AWG	22 AWG	Crimp
Hirose Electric USA, Inc. DF63W-3EP-3.96C						Crimp		Latch Holder	Free Hanging (In-Line)	Male Pin	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	1	Black	Plug	Waterproof (Mated)	Contacts Not Included	0.156 in	3.96 mm
Hirose Electric USA, Inc. DF63W-4EP-3.96C						Crimp	4	Latch Holder	Free Hanging (In-Line)	Male Pin	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	2	Black	Plug	Waterproof (Mated)	Contacts Not Included	0.156 in	3.96 mm	0.173 in	4.4 mm
Hirose Electric USA, Inc. DF63W-1618SC	Socket	Tin	Stamped	16 AWG	18 AWG	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.156" (3.96mm)
