SS60000-010G

Active

BEL MAGNETIC SOLUTIONS

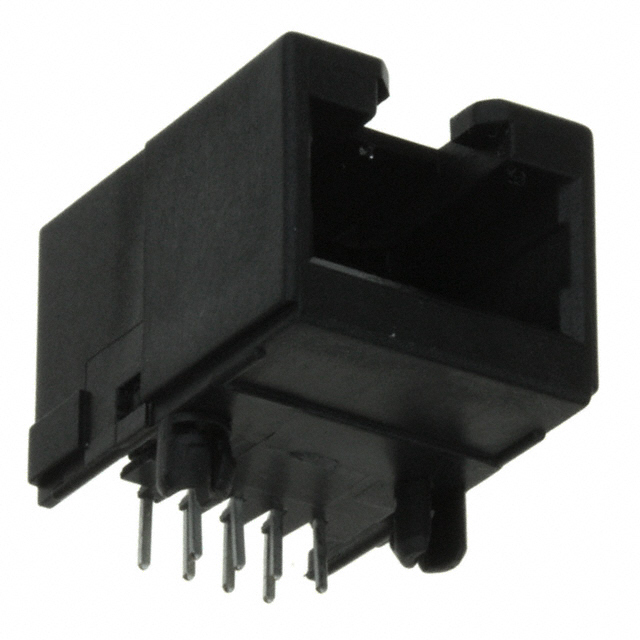

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS60000-010G

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Features	Board Lock, EPP918A
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Ratings	Cat6
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

SS-60000 Series

Part	Shielding	Contact Material	Tab Direction	Number of Positions/Contacts	Number of Ports	Termination	Features	Orientation	Housing Material	LED Color	Number of Rows	Ratings	Contact Finish	Mounting Type	Connector Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]
BEL MAGNETIC SOLUTIONS SS-60000-014	Unshielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder	Board Guide	47.5 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS-60000-010	Unshielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder		90 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS-60000-009	Shielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder		90 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS-60000-011	Shielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder	Board Guide	47.5 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS60000-008G	Shielded	Copper Alloy	User Selectable	8p8c (RJ45 Ethernet)	1	Solder	Board Lock EPP918A		Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack	Vertical	50 µin	1.27 µm	85 °C	-40 °C
BEL MAGNETIC SOLUTIONS SS-60000-024	Shielded	Copper Alloy	User Selectable	8p8c (RJ45 Ethernet)	1	Solder	Board Guide		Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack	Vertical
BEL MAGNETIC SOLUTIONS SS-60000-008	Shielded	Copper Alloy	User Selectable	8p8c (RJ45 Ethernet)	1	Solder			Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack	Vertical
BEL MAGNETIC SOLUTIONS SS60000-010G	Unshielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder	Board Lock EPP918A	90 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack		50 µin	1.27 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	400	$ 1.69

Description

General part information

SS-60000 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat6
