SS-60000-024

Active

BEL MAGNETIC SOLUTIONS

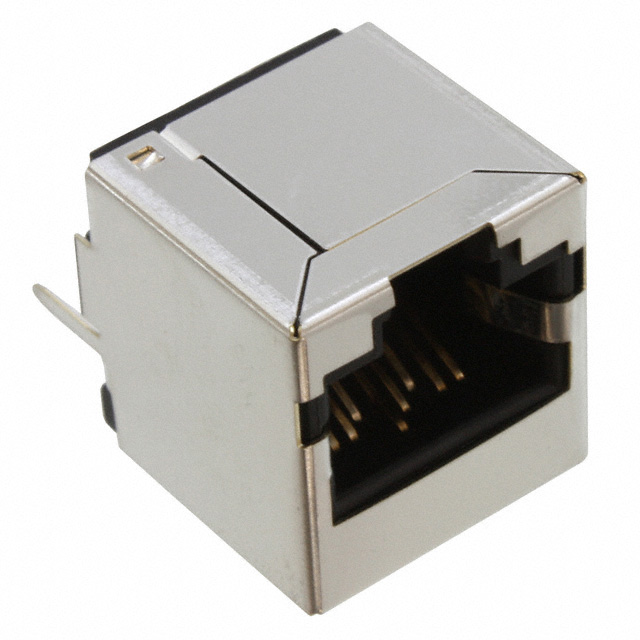

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT6, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

SS-60000-024

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT6, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-60000-024

Connector Type	Jack
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Board Guide
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	Vertical
Ratings	Cat6
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

SS-60000 Series

Part	Shielding	Contact Material	Tab Direction	Number of Positions/Contacts	Number of Ports	Termination	Features	Orientation	Housing Material	LED Color	Number of Rows	Ratings	Contact Finish	Mounting Type	Connector Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]
BEL MAGNETIC SOLUTIONS SS-60000-014	Unshielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder	Board Guide	47.5 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS-60000-010	Unshielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder		90 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS-60000-009	Shielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder		90 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS-60000-011	Shielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder	Board Guide	47.5 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack
BEL MAGNETIC SOLUTIONS SS60000-008G	Shielded	Copper Alloy	User Selectable	8p8c (RJ45 Ethernet)	1	Solder	Board Lock EPP918A		Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack	Vertical	50 µin	1.27 µm	85 °C	-40 °C
BEL MAGNETIC SOLUTIONS SS-60000-024	Shielded	Copper Alloy	User Selectable	8p8c (RJ45 Ethernet)	1	Solder	Board Guide		Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack	Vertical
BEL MAGNETIC SOLUTIONS SS-60000-008	Shielded	Copper Alloy	User Selectable	8p8c (RJ45 Ethernet)	1	Solder			Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack	Vertical
BEL MAGNETIC SOLUTIONS SS60000-010G	Unshielded	Copper Alloy	Up	8p8c (RJ45 Ethernet)	1	Solder	Board Lock EPP918A	90 °	Thermoplastic	Does Not Contain LED	1	Cat6	Gold	Through Hole	Jack		50 µin	1.27 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.05
		10	$ 2.77
		25	$ 2.63
		80	$ 2.44
		320	$ 2.14
		560	$ 2.08
		1040	$ 1.77
		2560	$ 1.65

Description

General part information

SS-60000 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded Cat6

Documents

Technical documentation and resources

Drawing EN

Datasheet
