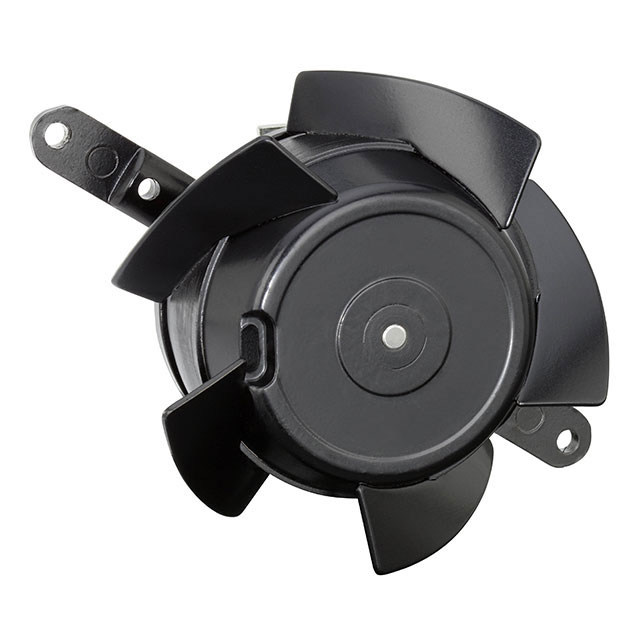

8556TA - 8000T(A,V)_Series

8556TA

Active
ebm-papst Inc.

FAN AXIAL 76X37MM 230VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC CatalogDatasheet
8556TA - 8000T(A,V)_Series

8556TA

Active
ebm-papst Inc.

FAN AXIAL 76X37MM 230VAC WIRE

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC CatalogDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification8556TA
Air Flow22.4 CFM
Air Flow0.627 m³/min
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Fan TypeTubeaxial
Lifetime @ Temp.52500 Hrs
Material - BladeMetal
Material - FrameMetal
Noise26 dB
Operating Temperature [Max]90 °C
Operating Temperature [Max]90 °C
Operating Temperature [Min]-40 °C
Operating Temperature [Min]-40 °C
Power (Watts)12 W
RPM2750 RPM
Size / Dimension [diameter]76 mm
Termination2 Wire Leads
Voltage - Rated230 VAC
Weight370.13 g
Weight0.816 lb
Width [y]37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 50$ 48.92

Description

General part information

8556 Series

Fan Tubeaxial 230VAC Round - 76mm Dia Ball 22.4 CFM (0.627m³/min) 2 Wire Leads
