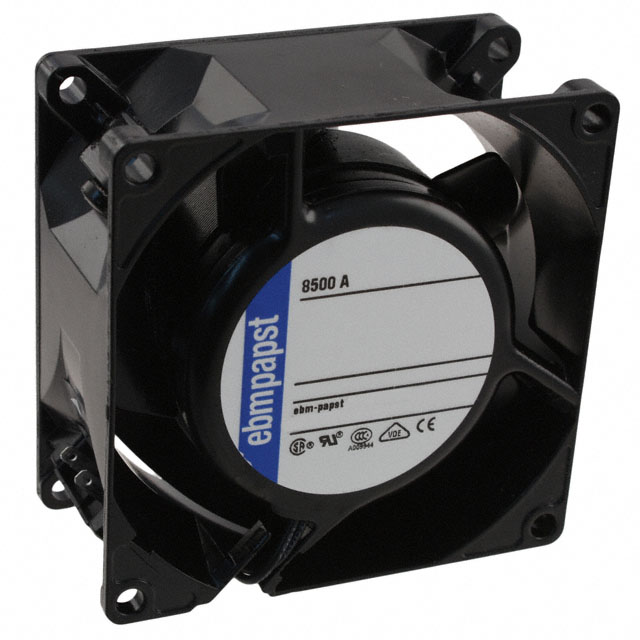

8556A - 8000A_Series_Side-A

8556A

Active
ebm-papst Inc.

FAN AXIAL 80X38MM 230VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTubeaxial Fan Accessories - Quick Reference+1
8556A - 8000A_Series_Side-A

8556A

Active
ebm-papst Inc.

FAN AXIAL 80X38MM 230VAC TERM

Deep-Dive with AI

DocumentsDatasheetTubeaxial Fan Accessories - Quick Reference+1

Technical Specifications

Parameters and characteristics for this part

Specification8556A
Air Flow28.3 CFM
Air Flow0.792 m³/min
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Fan TypeTubeaxial
Lifetime @ Temp.52500 Hrs
Material - BladeMetal
Material - FrameMetal
Noise37 dB
Operating Temperature [Max]90 °C
Operating Temperature [Max]90 °C
Operating Temperature [Min]-40 °C
Operating Temperature [Min]-40 °C
Power (Watts)12 W
RPM2800 RPM
Size / Dimension [x]80 mm
Size / Dimension [y]80 mm
Termination2 Terminals
Voltage - Rated230 VAC
Weight499 g
Weight1.1 lbs
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 56.93
10$ 51.51
25$ 48.12
50$ 47.44
100$ 43.71

Description

General part information

8556 Series

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 28.3 CFM (0.792m³/min) 2 Terminals
