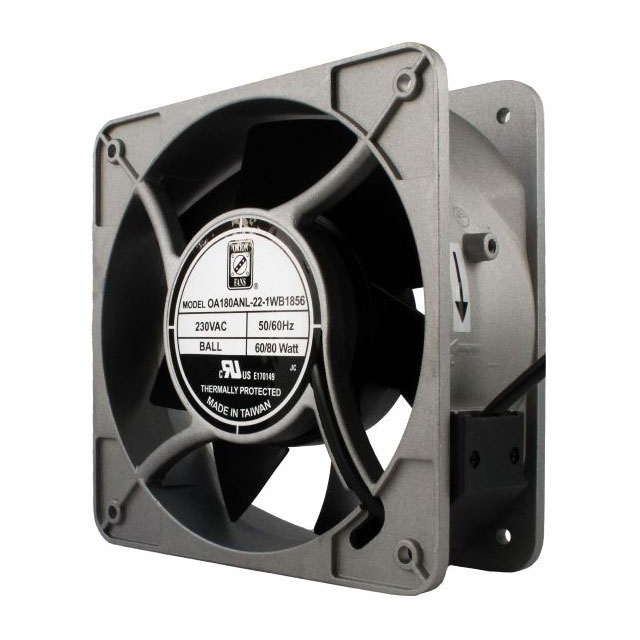

OA180ANL-22-1WB1856

Active

Orion Fans

AXIAL FAN, AC, OA180ANL-METAL SERIES, BALL BEARING, SQUARE, 400CFM, 65DB, 230V, 80W, 3250RPM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMetal Fans Catalog Miscellaneous EN +1

OA180ANL-22-1WB1856

Active

Orion Fans

AXIAL FAN, AC, OA180ANL-METAL SERIES, BALL BEARING, SQUARE, 400CFM, 65DB, 230V, 80W, 3250RPM

Deep-Dive with AI

DocumentsMetal Fans Catalog Miscellaneous EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA180ANL-22-1WB1856

Air Flow	9.24 m³/min
Air Flow	330 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	65 dB
Power (Watts)	80 W
RPM	3250 RPM
Size / Dimension	Square
Size / Dimension [x]	180 mm
Size / Dimension [y]	180 mm
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	1.7 kg
Weight	3.7 lbs
Width	65 mm

OA180AN Series

Part	Voltage - Rated	Noise	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Ingress Protection	RPM	Fan Type	Termination	Air Flow	Air Flow	Approval Agency	Power (Watts)	Material - Blade	Weight	Weight	Lifetime @ Temp.	Static Pressure	Static Pressure	Features	Width [y]	Bearing Type	Material - Frame	Width	Voltage Range [Max]	Voltage Range [Min]
Orion Fans OA180AN-22-1WB1856	230 VAC	63 dB	176 mm	Square	176 mm	IP56 - Dust Protected Water Resistant	3250 RPM	Tubeaxial	2 Wire Leads	380 CFM	10.64 m³/min	cURus TUV	80 W	Metal	1.9 kg	4.1 lbs	50000 Hrs	189.3 Pa	0.76 in H2O	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	Aluminum
Orion Fans OA180ANL-22-1WB1856	230 VAC	65 dB	180 mm	Square	180 mm	IP56 - Dust Protected Water Resistant	3250 RPM	Tubeaxial	2 Wire Leads	330 CFM	9.24 m³/min	cURus TUV	80 W	Metal	1.7 kg	3.7 lbs	50000 Hrs			Thermal Overload Protector (TOP)		Ball	Aluminum	65 mm
Orion Fans OA180AN-11-1WB1856	115 VAC	63 dB	176 mm	Square	176 mm	IP56 - Dust Protected Water Resistant	3250 RPM	Tubeaxial	2 Wire Leads	380 CFM	10.64 m³/min	cURus TUV	80 W	Metal	1.9 kg	4.1 lbs	50000 Hrs	189.3 Pa	0.76 in H2O	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	Aluminum		120 VAC	100 VAC
Orion Fans OA180ANL-11-1WB1856	115 VAC	65 dB	180 mm	Square	180 mm	IP56 - Dust Protected Water Resistant	3250 RPM	Tubeaxial	2 Wire Leads	330 CFM	9.24 m³/min	cURus TUV	80 W	Metal	1.7 kg	3.7 lbs	50000 Hrs			Thermal Overload Protector (TOP)		Ball	Aluminum	65 mm	120 VAC	100 VAC
Orion Fans OA180AN-22-1TB1856	230 VAC	63 dB	176 mm	Square	176 mm	IP56 - Dust Protected Water Resistant	3250 RPM	Tubeaxial	2 Terminals	380 CFM	10.64 m³/min	cURus TUV	80 W	Metal	1.9 kg	4.1 lbs	50000 Hrs	189.3 Pa	0.76 in H2O	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	Aluminum
Orion Fans OA180ANL-11-1TB1856	115 VAC	65 dB	180 mm	Square	180 mm	IP56 - Dust Protected Water Resistant	3250 RPM	Tubeaxial	2 Terminals	330 CFM	9.24 m³/min	cURus TUV	80 W	Metal	1.7 kg	3.7 lbs	50000 Hrs			Thermal Overload Protector (TOP)		Ball	Aluminum	65 mm	120 VAC	100 VAC
Orion Fans OA180AN-11-1TB1856	115 VAC	63 dB	176 mm	Square	176 mm	IP56 - Dust Protected Water Resistant	3250 RPM	Tubeaxial	2 Terminals	380 CFM	10.64 m³/min	cURus TUV	80 W	Metal	1.9 kg	4.1 lbs	50000 Hrs	189.3 Pa	0.76 in H2O	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	Aluminum		120 VAC	100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 107.86
		10	$ 96.94
		30	$ 95.57
		50	$ 89.43
		100	$ 87.38
Newark	Each	1	$ 135.18
		1000	$ 123.92

Description

General part information

OA180AN Series

Fan Tubeaxial 230VAC Square - 180mm L x 180mm H Ball 330.0 CFM (9.24m³/min) 2 Wire Leads
