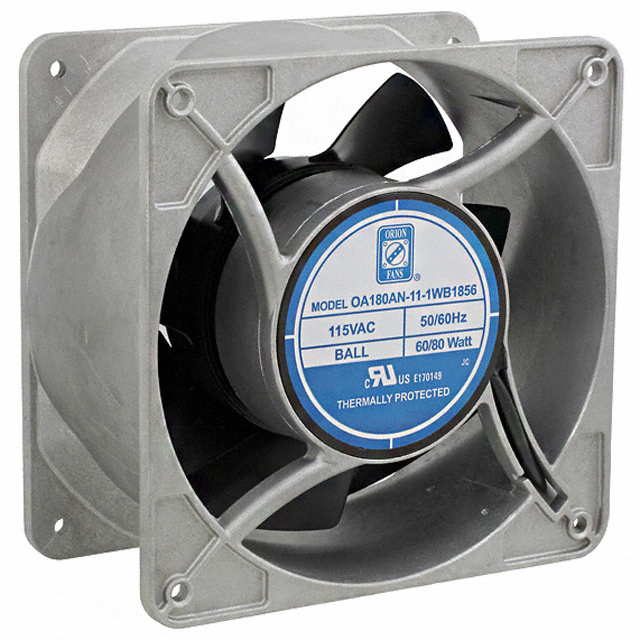

OA180AN-11-1WB1856
ActiveOrion Fans
AC AXIAL FAN, 115V, SQUARE, 176 MM, 89 MM, BALL BEARING, 380 CFM
Deep-Dive with AI
Search across all available documentation for this part.
OA180AN-11-1WB1856
ActiveOrion Fans
AC AXIAL FAN, 115V, SQUARE, 176 MM, 89 MM, BALL BEARING, 380 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA180AN-11-1WB1856 |
|---|---|
| Air Flow | 380 CFM |
| Air Flow | 10.64 m³/min |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Noise | 63 dB |
| Power (Watts) | 80 W |
| RPM | 3250 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 176 mm |
| Size / Dimension [y] | 176 mm |
| Static Pressure | 189.3 Pa |
| Static Pressure | 0.76 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 115 VAC |
| Voltage Range [Max] | 120 VAC |
| Voltage Range [Min] | 100 VAC |
| Weight | 1.9 kg |
| Weight | 4.1 lbs |
| Width [y] | 89 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA180AN Series
Fan Tubeaxial 115VAC Square - 176mm L x 176mm H Ball 380.0 CFM (10.64mł/min) 2 Wire Leads
