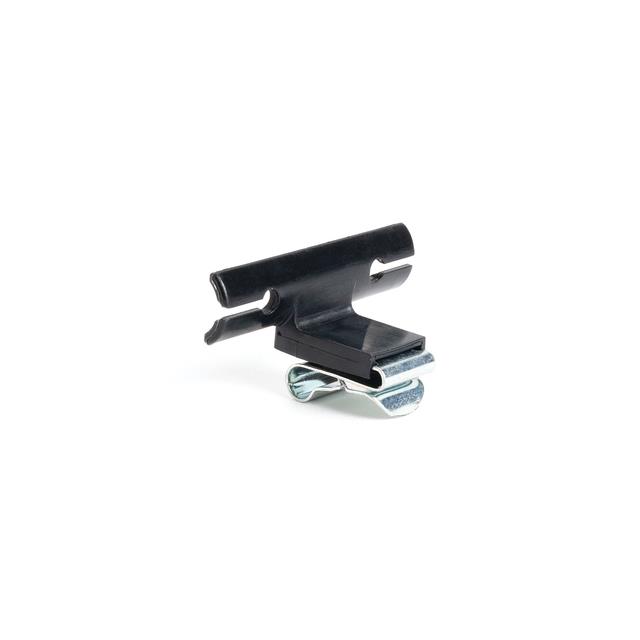

133-03524

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES ASM MOUN CLIP TAPE ON BLK EDGE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES ASM MOUN CLIP TAPE ON BLK EDGE

Technical Specifications

Parameters and characteristics for this part

Specification	133-03524

Color	Black
Features	Impact Modified, Heat Stabilized, UV Stabilized
Length	0.59 in
Length	14.99 mm
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Edge Mount, Clip On
Panel Thickness [Max]	2.03 mm
Panel Thickness [Max]	0.08 in
Panel Thickness [Min]	0.03 in
Panel Thickness [Min]	0.76 mm
Type	Bundling, Clip
Width [x]	0.39 in
Width [x]	9.91 mm

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Height [z]	Height [z]	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Max]	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Material Flammability Rating	Mounting Type	Color	Material	Length	Length	Width [y]	Width [y]	Type	Type Attributes	Width [x]	Width [x]	Features
HELLERMANNTYTON 133-03178	0.06 in	1.27 mm	1.52 mm	0.05 in	21.8 mm	0.86 in	6.1 mm	0.24 in	0.272 in	6.9 mm	5.1 mm	0.201 in	0.185 in	4.7 mm	UL94 HB	Arrowhead	Black	Polyamide (PA66) Nylon 6/6	0.67 in	17.02 mm	0.394 in	10 mm	C-Type Clip	Open
HELLERMANNTYTON 133-03524	0.08 in	0.76 mm	2.03 mm	0.03 in												Clip On Edge Mount	Black	Polyamide (PA66) Nylon 6/6	0.59 in	14.99 mm			Bundling Clip		0.39 in	9.91 mm	Heat Stabilized Impact Modified UV Stabilized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Bundling Black Edge Mount, Clip On 0.160" (4.06mm)
