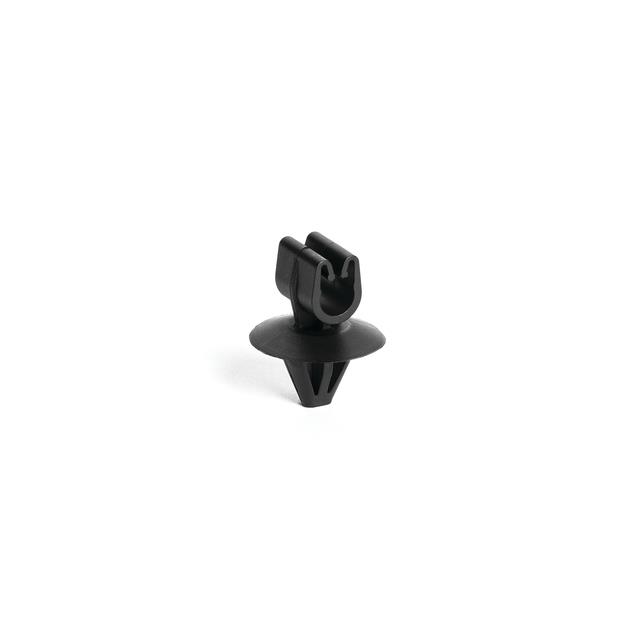

133-03178

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES TUBE AND PIPE CLIP WITH 6.5MM ARROWHEAD, 4.7-5.1MM DIAMETER, PA66HIRHS, BLACK, 4000/CTN

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES TUBE AND PIPE CLIP WITH 6.5MM ARROWHEAD, 4.7-5.1MM DIAMETER, PA66HIRHS, BLACK, 4000/CTN

Technical Specifications

Parameters and characteristics for this part

Specification	133-03178

Color	Black
Height [z]	21.8 mm
Height [z]	0.86 in
Length	0.67 in
Length	17.02 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Arrowhead
Opening Size [Max] [z]	5.1 mm
Opening Size [Max] [z]	0.201 in
Opening Size [Min] [z]	0.185 in
Opening Size [Min] [z]	4.7 mm
Panel Hole Size [Max]	0.272 in
Panel Hole Size [Max]	6.9 mm
Panel Hole Size [Min]	6.1 mm
Panel Hole Size [Min]	0.24 in
Panel Thickness [Max]	0.06 in
Panel Thickness [Max]	1.52 mm
Panel Thickness [Min]	1.27 mm
Panel Thickness [Min]	0.05 in
Type	C-Type, Clip
Type Attributes	Open
Width [y]	0.394 in
Width [y]	10 mm

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Height [z]	Height [z]	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Max]	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Material Flammability Rating	Mounting Type	Color	Material	Length	Length	Width [y]	Width [y]	Type	Type Attributes	Width [x]	Width [x]	Features
HELLERMANNTYTON 133-03178	0.06 in	1.27 mm	1.52 mm	0.05 in	21.8 mm	0.86 in	6.1 mm	0.24 in	0.272 in	6.9 mm	5.1 mm	0.201 in	0.185 in	4.7 mm	UL94 HB	Arrowhead	Black	Polyamide (PA66) Nylon 6/6	0.67 in	17.02 mm	0.394 in	10 mm	C-Type Clip	Open
HELLERMANNTYTON 133-03524	0.08 in	0.76 mm	2.03 mm	0.03 in												Clip On Edge Mount	Black	Polyamide (PA66) Nylon 6/6	0.59 in	14.99 mm			Bundling Clip		0.39 in	9.91 mm	Heat Stabilized Impact Modified UV Stabilized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.36
Sager	N/A	4000	$ 0.43

General part information

Cable Clip, C-Type Black Arrowhead 0.185" ~ 0.201" (4.70mm ~ 5.10mm)
