SJS861401
ActiveAMPHENOL PCD

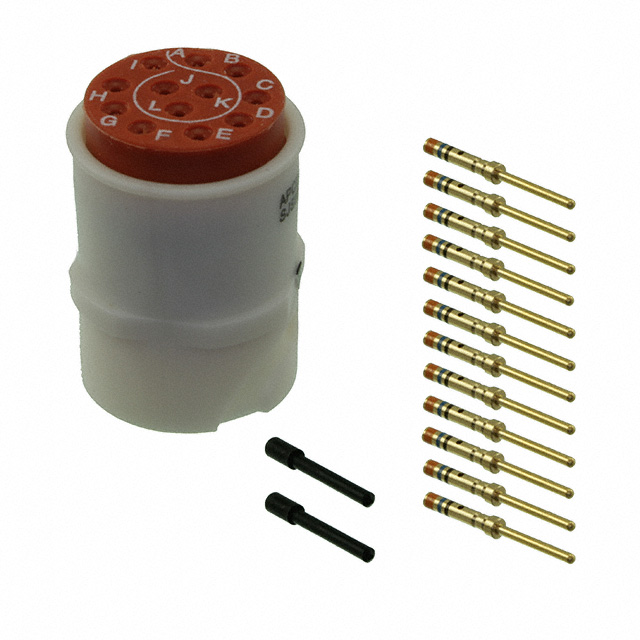

CONN RCPT MALE 12POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
SJS861401
ActiveAMPHENOL PCD
CONN RCPT MALE 12POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SJS861401 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Sealed |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 8 |
| Termination | Crimp |
SJS86 Series
| Part | Contact Type | Type | Fastening Type | Shell Material | Connector Type | Note | Number of Positions | Contact Size | Features | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Color | Shielding | Material Flammability Rating | Mounting Type | Contact Shape | Shell Size - Insert | Contact Finish - Mating | Termination | Primary Material | Current Rating (Amps) | Contact Size | Contact Material | Color | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL PCD | Crimp | For Female Sockets | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Plug Housing | Contacts Not Included | 9 | 16 22D | Coupling Nut | 125 °C | -65 ░C | IP67 - Dust Tight Waterproof | White | Unshielded | UL94 V-0 | Free Hanging (In-Line) | Circular | 8 | |||||||||||
AMPHENOL PCD | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Male Pins Receptacle | 125 °C | -65 ░C | Environment Sealed | Free Hanging (In-Line) | 8 | Gold | Crimp | Plastic | 5 A | |||||||||||||||||
AMPHENOL PCD | Crimp | For Male Pins | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Receptacle Housing | Contacts Not Included | 9 | 16 22D | Dust Cap | 155 °C | -65 ░C | IP67 - Dust Tight Waterproof | White | Unshielded | UL94 V-0 | Free Hanging (In-Line) | Circular | 10 | 4 5 | ||||||||||
AMPHENOL PCD | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Female Sockets Plug | 10 | 125 °C | -65 ░C | Environment Sealed | Free Hanging (In-Line) | 10 | Gold | Crimp | Plastic | |||||||||||||||||
AMPHENOL PCD | Crimp | For Male Pins | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Receptacle Housing | Contacts Not Included | 22D | Dust Cap | 155 °C | -65 ░C | IP67 - Dust Tight Waterproof | White | Unshielded | UL94 V-0 | Free Hanging (In-Line) | Circular | 8 | ||||||||||||
AMPHENOL PCD | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Male Pins Receptacle | 12 | 125 °C | -65 ░C | Environment Sealed | Free Hanging (In-Line) | 8 | Gold | Crimp | Plastic | 5 A | ||||||||||||||||
AMPHENOL PCD | Crimp | For Male Pins | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Receptacle Housing | Contacts Not Included | 9 | 16 22D | 125 °C | -65 ░C | IP67 - Dust Tight Waterproof | White | Unshielded | UL94 V-0 | Free Hanging (In-Line) | Circular | 8 | ||||||||||||
AMPHENOL PCD | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Female Sockets Plug | 125 °C | -65 ░C | Environment Sealed | Free Hanging (In-Line) | 8 | Gold | Crimp | Plastic | 5 A | |||||||||||||||||
AMPHENOL PCD | Bayonet Lock | Polyamide (PA66) Nylon 6/6 | Male Pins Receptacle | 125 °C | -65 ░C | IP67 - Dust Tight Waterproof | Unshielded | UL94 V-0 | Free Hanging (In-Line) | 7 | Gold | Crimp | Plastic | 7.5 A | Copper Alloy | White | 11.43 mm | 0.45 in | 1.27 µm | 50 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 54.42 | |
Description
General part information
SJS86 Series
12 Position Circular Connector Receptacle, Male Pins Crimp
