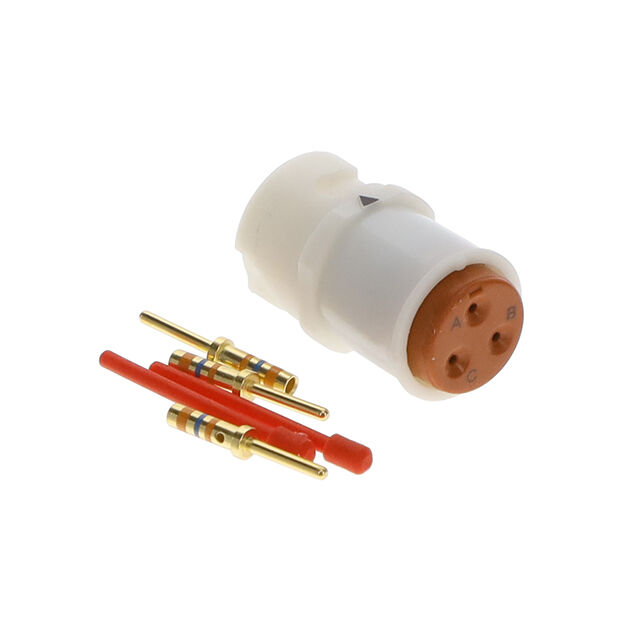

SJS862401

Active

AMPHENOL PCD

3 POSITION, SIZE 20 INLINE RECEP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJS862401

Active

AMPHENOL PCD

3 POSITION, SIZE 20 INLINE RECEP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJS862401

Cable Opening [diameter]	11.43 mm
Cable Opening [diameter]	0.45 in
Color	White
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	7
Shielding	Unshielded
Termination	Crimp

SJS86 Series

Part	Contact Type	Type	Fastening Type	Shell Material	Connector Type	Note	Number of Positions	Contact Size	Features	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Color	Shielding	Material Flammability Rating	Mounting Type	Contact Shape	Shell Size - Insert	Contact Finish - Mating	Termination	Primary Material	Current Rating (Amps)	Contact Size	Contact Material	Color	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
AMPHENOL PCD SJS860100	Crimp	For Female Sockets	Bayonet Lock	Polyamide (PA66) Nylon 6/6	Plug Housing	Contacts Not Included	9	16 22D	Coupling Nut	125 °C	-65 ░C	IP67 - Dust Tight Waterproof	White	Unshielded	UL94 V-0	Free Hanging (In-Line)	Circular	8
AMPHENOL PCD SJS860501			Bayonet Lock	Polyamide (PA66) Nylon 6/6	Male Pins Receptacle					125 °C	-65 ░C	Environment Sealed				Free Hanging (In-Line)		8	Gold	Crimp	Plastic	5 A
AMPHENOL PCD SJS860900	Crimp	For Male Pins	Bayonet Lock	Polyamide (PA66) Nylon 6/6	Receptacle Housing	Contacts Not Included	9	16 22D	Dust Cap	155 °C	-65 ░C	IP67 - Dust Tight Waterproof	White	Unshielded	UL94 V-0	Free Hanging (In-Line)	Circular	10					4 5
AMPHENOL PCD SJS861101			Bayonet Lock	Polyamide (PA66) Nylon 6/6	Female Sockets Plug		10			125 °C	-65 ░C	Environment Sealed				Free Hanging (In-Line)		10	Gold	Crimp	Plastic
AMPHENOL PCD SJS860500	Crimp	For Male Pins	Bayonet Lock	Polyamide (PA66) Nylon 6/6	Receptacle Housing	Contacts Not Included		22D	Dust Cap	155 °C	-65 ░C	IP67 - Dust Tight Waterproof	White	Unshielded	UL94 V-0	Free Hanging (In-Line)	Circular	8
AMPHENOL PCD SJS861401			Bayonet Lock	Polyamide (PA66) Nylon 6/6	Male Pins Receptacle		12			125 °C	-65 ░C	Environment Sealed				Free Hanging (In-Line)		8	Gold	Crimp	Plastic	5 A
AMPHENOL PCD SJS860200	Crimp	For Male Pins	Bayonet Lock	Polyamide (PA66) Nylon 6/6	Receptacle Housing	Contacts Not Included	9	16 22D		125 °C	-65 ░C	IP67 - Dust Tight Waterproof	White	Unshielded	UL94 V-0	Free Hanging (In-Line)	Circular	8
AMPHENOL PCD SJS860511			Bayonet Lock	Polyamide (PA66) Nylon 6/6	Female Sockets Plug					125 °C	-65 ░C	Environment Sealed				Free Hanging (In-Line)		8	Gold	Crimp	Plastic	5 A
AMPHENOL PCD SJS862401			Bayonet Lock	Polyamide (PA66) Nylon 6/6	Male Pins Receptacle					125 °C	-65 ░C	IP67 - Dust Tight Waterproof		Unshielded	UL94 V-0	Free Hanging (In-Line)		7	Gold	Crimp	Plastic	7.5 A		Copper Alloy	White	11.43 mm	0.45 in	1.27 µm	50 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.59
		1	$ 43.26
		10	$ 13.11
		10	$ 37.88
		25	$ 12.25
		50	$ 11.50
		100	$ 10.83
		100	$ 33.90

Description

General part information

SJS86 Series

3 Position Circular Connector Receptacle, Male Pins Crimp
