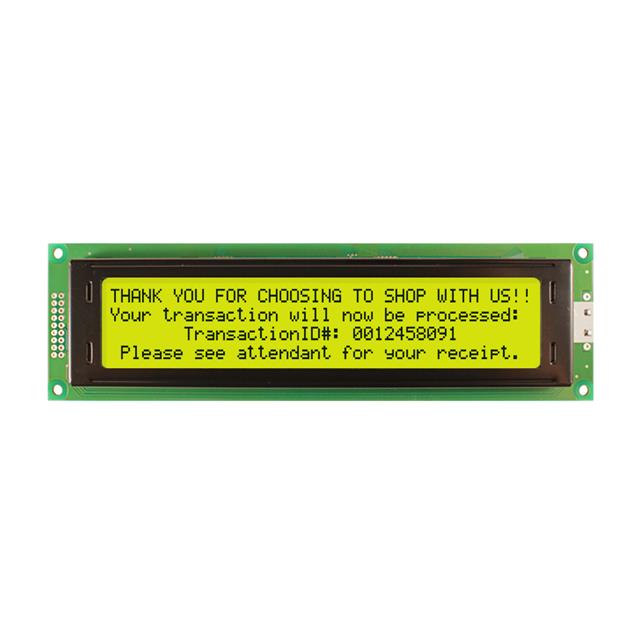

NHD-0440AZ-FL-YBW

Active

Newhaven Display Intl

LCD MOD 160DIG 40X4 TRAN YLW/GRN

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 160DIG 40X4 TRAN YLW/GRN

Technical Specifications

Parameters and characteristics for this part

Part	Character Format [y]	Character Format [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Dot Size [y]	Dot Size [x]	Display Format [y]	Display Format [x]	Background Color	Text Color	Display Mode	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Viewing Area [y]	Viewing Area [x]	Character Size [y]	Character Size [z]	Display Type	Interface	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Backlight	Controller Type
Newhaven Display Intl NHD-0440AZ-FL-GBW	8 Dots	5 Dots	2.7 V	5.5 V	0.55 mm	0.5 mm	4	40	Green	Gray	Transflective	190 mm	9.5 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C
Newhaven Display Intl NHD-0440WH-ATFH-JT#	8 Dots	5 Dots	4.75 V	5.25 V	0.55 mm	0.5 mm	4	40	White	Black	Transflective	190 mm	13.6 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	FSTN - Film Super-Twisted Nematic	Parallel	160	-20 C	70 °C	LED - White	ST7066-0A
Newhaven Display Intl NHD-0440AZ-FL-YBW	8 Dots	5 Dots	4.7 V	5.5 V	0.55 mm	0.5 mm	4	40	Green	Blue	Transflective	190 mm	13 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C		ST7066-0A
Newhaven Display Intl NHD-0440WH-ATMI-JT#	8 Dots	5 Dots	4.75 V	5.25 V	0.55 mm	0.5 mm	4	40	Blue	White	Transmissive	190 mm	13.6 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C	LED - White	ST7066-0A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 190.00mm x 54.00mm x 13.00mm
