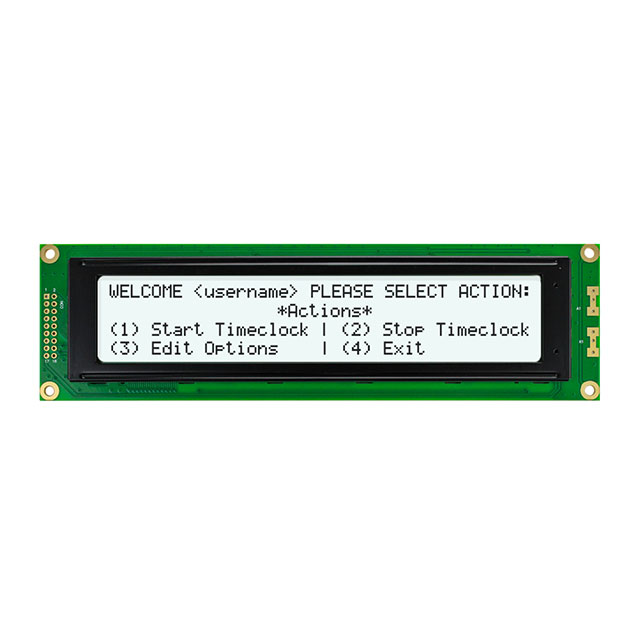

NHD-0440WH-ATFH-JT#

Active

Newhaven Display Intl

LCD MOD 160DIG 40X4 TRANSFLCT WH

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 160DIG 40X4 TRANSFLCT WH

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0440WH-ATFH-JT#

Background Color	White
Backlight	LED - White
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	2.78 mm
Character Size [z]	4.89 mm
Controller Type	ST7066-0A
Display Format [x]	40
Display Format [y]	4
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Size [x]	0.5 mm
Dot Size [y]	0.55 mm
Interface	Parallel
Number of Characters	160
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	190 mm
Outline L x W x H [y]	54 mm
Outline L x W x H [z]	13.6 mm
Text Color	Black
Viewing Area [x]	147 mm
Viewing Area [y]	29.5 mm
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Character Format [y]	Character Format [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Dot Size [y]	Dot Size [x]	Display Format [y]	Display Format [x]	Background Color	Text Color	Display Mode	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Viewing Area [y]	Viewing Area [x]	Character Size [y]	Character Size [z]	Display Type	Interface	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Backlight	Controller Type
Newhaven Display Intl NHD-0440AZ-FL-GBW	8 Dots	5 Dots	2.7 V	5.5 V	0.55 mm	0.5 mm	4	40	Green	Gray	Transflective	190 mm	9.5 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C
Newhaven Display Intl NHD-0440WH-ATFH-JT#	8 Dots	5 Dots	4.75 V	5.25 V	0.55 mm	0.5 mm	4	40	White	Black	Transflective	190 mm	13.6 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	FSTN - Film Super-Twisted Nematic	Parallel	160	-20 C	70 °C	LED - White	ST7066-0A
Newhaven Display Intl NHD-0440AZ-FL-YBW	8 Dots	5 Dots	4.7 V	5.5 V	0.55 mm	0.5 mm	4	40	Green	Blue	Transflective	190 mm	13 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C		ST7066-0A
Newhaven Display Intl NHD-0440WH-ATMI-JT#	8 Dots	5 Dots	4.75 V	5.25 V	0.55 mm	0.5 mm	4	40	Blue	White	Transmissive	190 mm	13.6 mm	54 mm	29.5 mm	147 mm	2.78 mm	4.89 mm	STN - Super-Twisted Nematic	Parallel	160	-20 C	70 °C	LED - White	ST7066-0A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel 190.00mm x 54.00mm x 13.60mm
