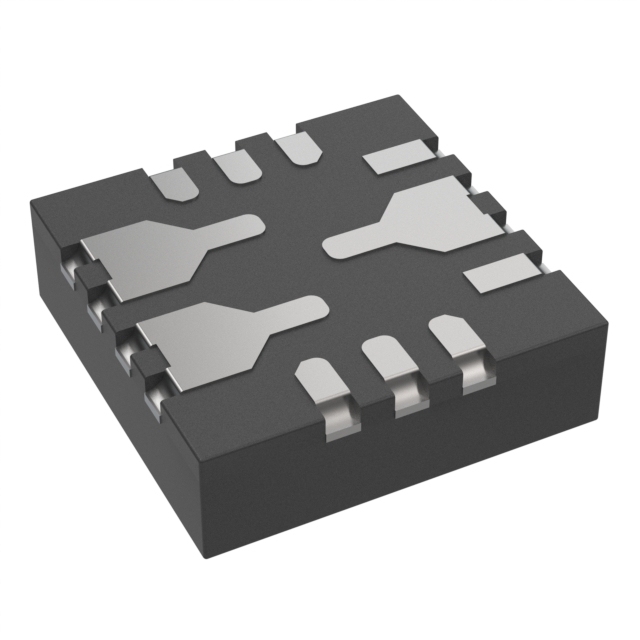

MPQ2167AGQE-AEC1-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 6A 14QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 6A 14QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ2167AGQE-AEC1-P

Current - Output	6 A
Frequency - Switching [Max]	2.1 MHz
Frequency - Switching [Min]	450 kHz
Function	Step-Down
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	14-PowerVFQFN
Qualification	AEC-Q100
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	6 V
Voltage - Input (Min) [Min]	2.7 V
Voltage - Output (Min/Fixed)	0.606 V

Part	Supplied Contents	Voltage - Output	Regulator Topology	Board Type	Utilized IC / Part	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Outputs and Type	Outputs and Type	Main Purpose	Output Configuration	Number of Outputs	Qualification	Voltage - Input (Max) [Max]	Output Type	Grade	Topology	Mounting Type	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]	Frequency - Switching [Max]	Package / Case	Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Supplier Device Package
MONOLITHIC POWER SYSTEMS (MPS) EV2167A-Q-00A	Board(s)	1.8 V	Buck	Fully Populated	MPQ2167A-AEC1	2.1 MHz	6 V	2.7 V	6 A	Non-Isolated	1	DC/DC Step Down
MONOLITHIC POWER SYSTEMS (MPS) MPQ2167AGQE-AEC1-P									6 A				Positive	1	AEC-Q100	6 V	Adjustable	Automotive	Buck	Surface Mount Wettable Flank	0.606 V	450 kHz	2.1 MHz	14-PowerVFQFN	Step-Down	-40 °C	125 ¯C	2.7 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ2167BGDE-AEC1-P									4 A				Positive	1	AEC-Q100	6 V	Adjustable	Automotive	Buck	Surface Mount Wettable Flank	0.606 V	450 kHz	2.1 MHz	11-PowerVFQFN	Step-Down	-40 °C	125 ¯C	2.7 V	11-QFN (2x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.606V 1 Output 6A 14-PowerVFQFN
