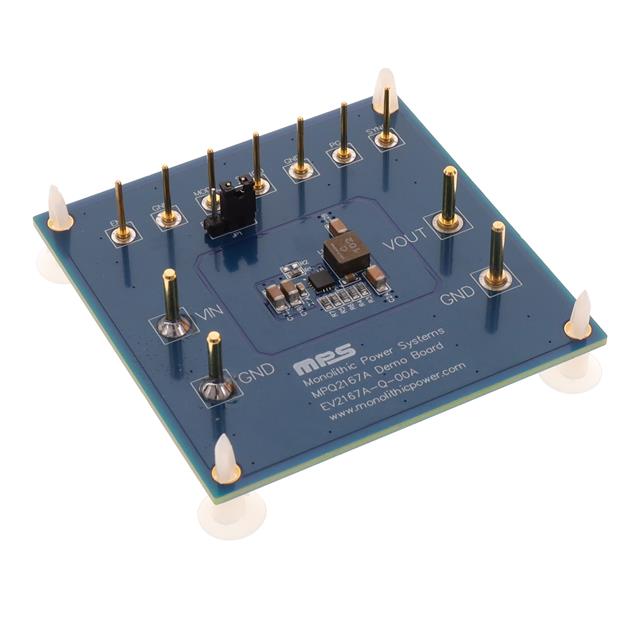

EV2167A-Q-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ2167A-AEC1

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ2167A-AEC1

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Voltage - Output	Regulator Topology	Board Type	Utilized IC / Part	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Outputs and Type	Outputs and Type	Main Purpose	Output Configuration	Number of Outputs	Qualification	Voltage - Input (Max) [Max]	Output Type	Grade	Topology	Mounting Type	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]	Frequency - Switching [Max]	Package / Case	Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Supplier Device Package
MONOLITHIC POWER SYSTEMS (MPS) EV2167A-Q-00A	Board(s)	1.8 V	Buck	Fully Populated	MPQ2167A-AEC1	2.1 MHz	6 V	2.7 V	6 A	Non-Isolated	1	DC/DC Step Down
MONOLITHIC POWER SYSTEMS (MPS) MPQ2167AGQE-AEC1-P									6 A				Positive	1	AEC-Q100	6 V	Adjustable	Automotive	Buck	Surface Mount Wettable Flank	0.606 V	450 kHz	2.1 MHz	14-PowerVFQFN	Step-Down	-40 °C	125 ¯C	2.7 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ2167BGDE-AEC1-P									4 A				Positive	1	AEC-Q100	6 V	Adjustable	Automotive	Buck	Surface Mount Wettable Flank	0.606 V	450 kHz	2.1 MHz	11-PowerVFQFN	Step-Down	-40 °C	125 ¯C	2.7 V	11-QFN (2x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

General part information

MPQ2167A-AEC1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
