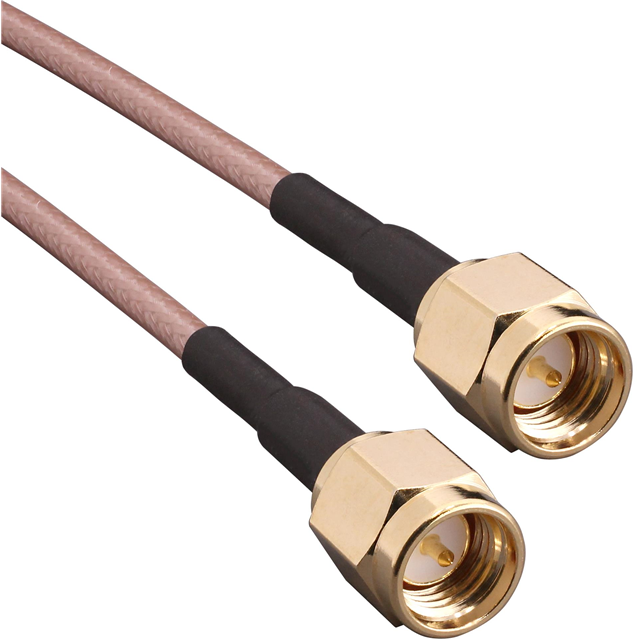

CSE-SGAM-152-SGAM

Active

TE Connectivity Linx

COAX CABLE SMA TO SMA 6"

Search across all available documentation for this part.

Active

TE Connectivity Linx

COAX CABLE SMA TO SMA 6"

Technical Specifications

Parameters and characteristics for this part

Part	Overall Impedance	2nd Contact Gender	1st Connector Mounting Feature	Cable Impedance	Style	2nd Connector Mounting Type	Color	1st Connector Mounting Type	1st Contact Gender	Cable Type	Operating Temperature	Frequency - Max [Max]	Length	Length	2nd Connector	1st Connector
TE Connectivity Linx CSE-SGAM-305-SGFB	50 Ohms	Male	Bulkhead - Front Side Nut	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Copper	Panel Mount	Female	RG-316	105 C	12.4 GHz	12 "	304.8 mm	SMA Plug	SMA Jack
TE Connectivity Linx CSE-SGAM-152-SGAM	50 Ohms	Male		50 Ohms	SMA to SMA	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	Male	RG-316	105 C	8 GHz	6 in	152.4 mm	SMA Plug	SMA Plug
TE Connectivity Linx CSE-SGAM-914-SGFB	50 Ohms	Male	Bulkhead - Front Side Nut	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Copper	Panel Mount	Female	RG-316	105 C	12.4 GHz	36 in	91.44 cm	SMA Plug	SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA RG-316 6.000" (152.40mm)
