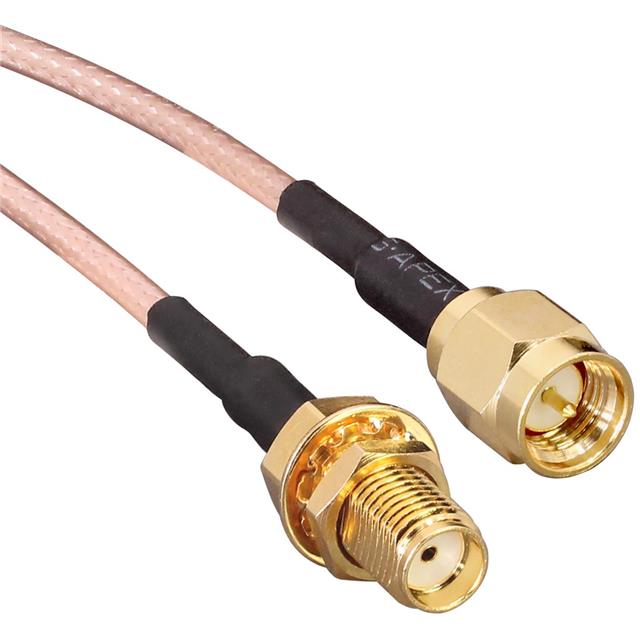

CSE-SGAM-914-SGFB

Active

TE Connectivity Linx

COAX CBL SMA TO SMA 36"

Search across all available documentation for this part.

Active

TE Connectivity Linx

COAX CBL SMA TO SMA 36"

Technical Specifications

Parameters and characteristics for this part

Specification	CSE-SGAM-914-SGFB

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Frequency - Max [Max]	12.4 GHz
Length	91.44 cm
Length	36 in
Operating Temperature	105 C
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	Overall Impedance	2nd Contact Gender	1st Connector Mounting Feature	Cable Impedance	Style	2nd Connector Mounting Type	Color	1st Connector Mounting Type	1st Contact Gender	Cable Type	Operating Temperature	Frequency - Max [Max]	Length	Length	2nd Connector	1st Connector
TE Connectivity Linx CSE-SGAM-305-SGFB	50 Ohms	Male	Bulkhead - Front Side Nut	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Copper	Panel Mount	Female	RG-316	105 C	12.4 GHz	12 "	304.8 mm	SMA Plug	SMA Jack
TE Connectivity Linx CSE-SGAM-152-SGAM	50 Ohms	Male		50 Ohms	SMA to SMA	Free Hanging (In-Line)	Copper	Free Hanging (In-Line)	Male	RG-316	105 C	8 GHz	6 in	152.4 mm	SMA Plug	SMA Plug
TE Connectivity Linx CSE-SGAM-914-SGFB	50 Ohms	Male	Bulkhead - Front Side Nut	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Copper	Panel Mount	Female	RG-316	105 C	12.4 GHz	36 in	91.44 cm	SMA Plug	SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 12.59

General part information

Cable Assembly Coaxial SMA to SMA RG-316 36.00" (914.40mm)
