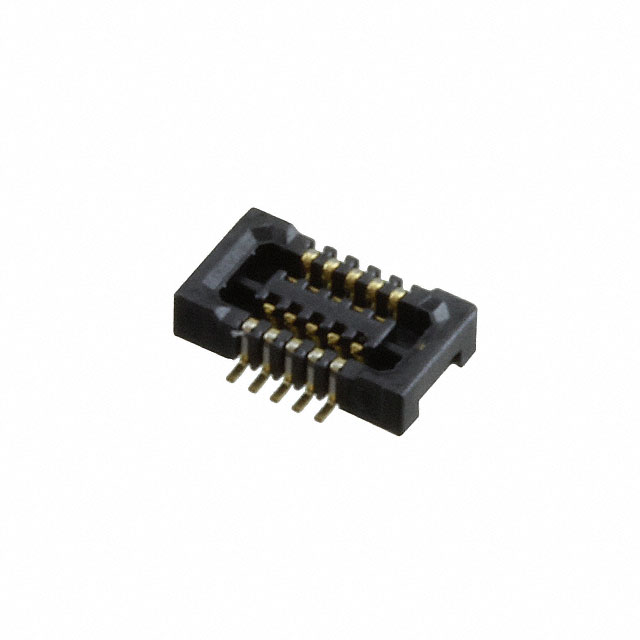

DF37NB-10DS-0.4V(53)

Active

Hirose Electric USA, Inc.

0.4MM PITCH, 0.98/1.5MM MATED HEIGHT, BOARD-TO-BOARD / BOARD-TO-FPC CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF37NB-10DS-0.4V(53)

Active

Hirose Electric USA, Inc.

0.4MM PITCH, 0.98/1.5MM MATED HEIGHT, BOARD-TO-BOARD / BOARD-TO-FPC CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF37NB-10DS-0.4V(53)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.97 mm
Height Above Board	0.038 in
Mated Stacking Heights [z]	0.98 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

DF37NB Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Height Above Board	Height Above Board	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights [z]	Features	Height Above Board	Mated Stacking Heights
Hirose Electric USA, Inc. DF37NB-20DS-0.4V(75)	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	20	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-20DS-0.4V(53)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	20	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-30DS-0.4V(51)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	30	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-24DS-0.4V(73)
Hirose Electric USA, Inc. DF37NB-24DS-0.4V(58)
Hirose Electric USA, Inc. DF37NB-44DS-0.4V(75)	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	44	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-74DS-0.4V(75)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	74	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB(1.5)-24DS-0.4V(53)	1.97 Áin	0.05 Ám	2	Center Strip Contacts Receptacle	0.059 in		24	Gold	0.016 in	0.4 mm	Surface Mount		Solder Retention	1.5 mm	1.5 mm
Hirose Electric USA, Inc. DF37NB-40DS-0.4V(53)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	40	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-10DS-0.4V(53)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	10	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.31
Newark	Each (Supplied on Full Reel)	1	$ 0.58
		5000	$ 0.52

Description

General part information

DF37NB Series

10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
