DF37NB-30DS-0.4V(51)

Active

Hirose Electric USA, Inc.

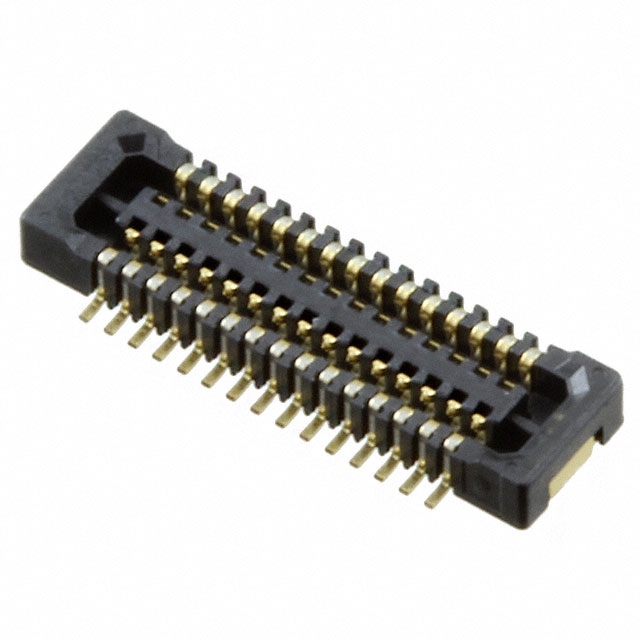

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF37NB-xDS-0.4V(51) Spec Datasheet

DF37NB-30DS-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

DocumentsDF37NB-xDS-0.4V(51) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF37NB-30DS-0.4V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.97 mm
Height Above Board	0.038 in
Mated Stacking Heights [z]	0.98 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

DF37NB Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Height Above Board	Height Above Board	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights [z]	Features	Height Above Board	Mated Stacking Heights
Hirose Electric USA, Inc. DF37NB-20DS-0.4V(75)	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	20	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-20DS-0.4V(53)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	20	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-30DS-0.4V(51)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	30	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-24DS-0.4V(73)
Hirose Electric USA, Inc. DF37NB-24DS-0.4V(58)
Hirose Electric USA, Inc. DF37NB-44DS-0.4V(75)	4 Áin	0.1 Ám	2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	44	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-74DS-0.4V(75)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	74	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB(1.5)-24DS-0.4V(53)	1.97 Áin	0.05 Ám	2	Center Strip Contacts Receptacle	0.059 in		24	Gold	0.016 in	0.4 mm	Surface Mount		Solder Retention	1.5 mm	1.5 mm
Hirose Electric USA, Inc. DF37NB-40DS-0.4V(53)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	40	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
Hirose Electric USA, Inc. DF37NB-10DS-0.4V(53)			2	Center Strip Contacts Receptacle	0.97 mm	0.038 in	10	Gold	0.016 in	0.4 mm	Surface Mount	0.98 mm	Solder Retention
