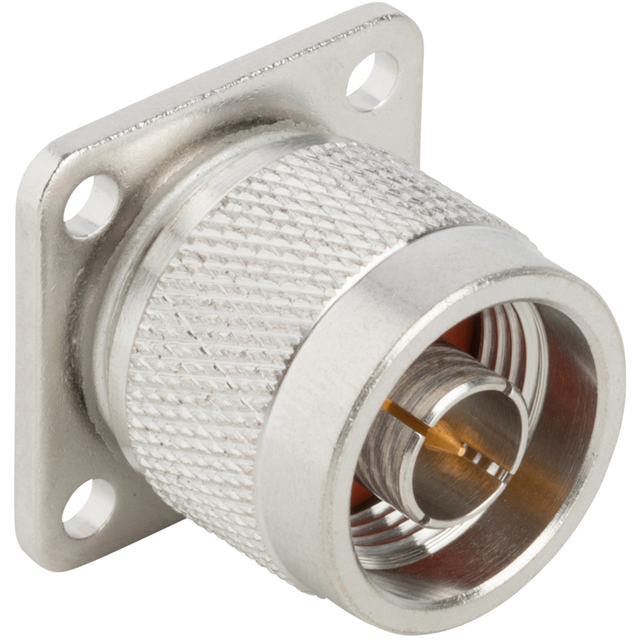

000-49000-RFX

Active

Amphenol RF

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	000-49000-RFX

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Receptacle
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Dielectric Material	Impedance	Voltage Rating	Contact Termination	Shield Termination	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Center Contact Material	Center Contact Plating	Body Finish	Body Material	Housing Color	Ingress Protection	Frequency - Max [Max]	Connector Type	Mounting Feature	Connector Style
Amphenol RF 000-49000	Copolymer	50 Ohms	1500 V	Solder Cup	Solder	500	85 °C	-55 °C	1	Brass	Silver	Silver	Brass	Silver	Weatherproof	11 GHz	Male Pin Receptacle	Flange	N Type
Amphenol RF 000-49000-RFX	Polytetrafluoroethylene (PTFE)	50 Ohms	1500 V	Solder Cup	Solder	500	165 °C	-65 ░C	1	Brass	Gold	Nickel	Brass	Silver	Weatherproof	11 GHz	Male Pin Receptacle	Flange	N Type

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder Cup
