000-49000
ActiveAmphenol RF

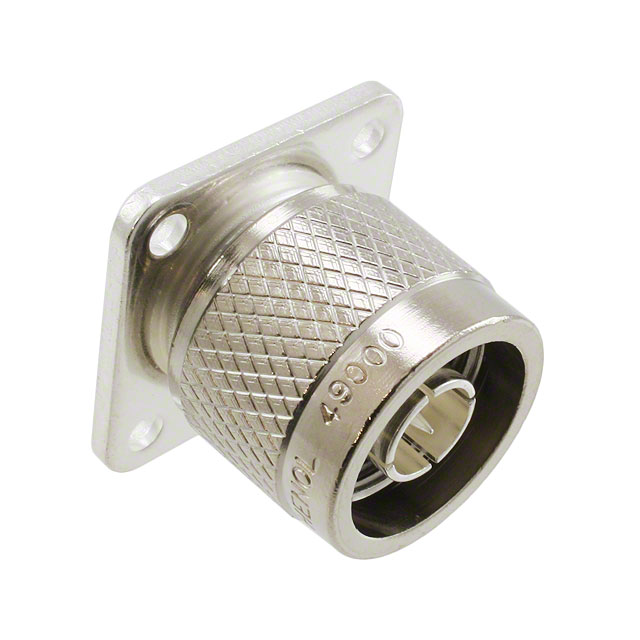

CONN N RCPT STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
000-49000
ActiveAmphenol RF
CONN N RCPT STR 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 000-49000 |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder Cup |
| Dielectric Material | Copolymer |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | Weatherproof |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.05 | |
| 10 | $ 43.17 | |||
| 25 | $ 41.51 | |||
| 50 | $ 40.13 | |||
| 100 | $ 37.92 | |||
Description
General part information
000-49 Series
N Type Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder Cup
Documents
Technical documentation and resources
No documents available
